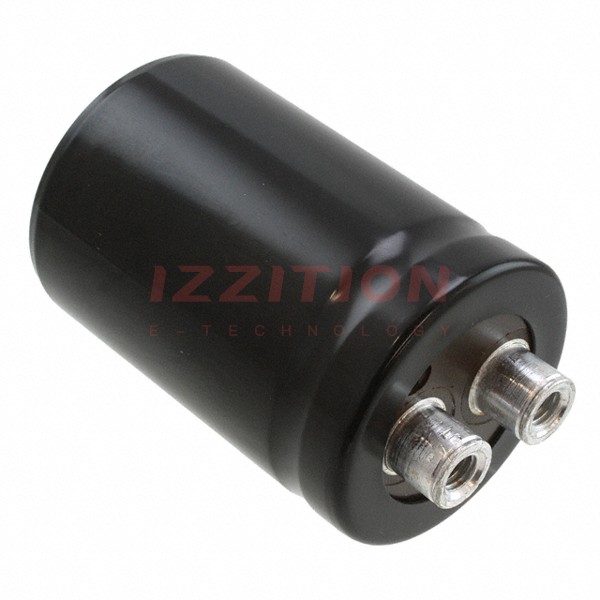

| Part Number | ALS30A471DA200 | ALS30A471DA250 |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Capacitance | 470 µF | 470 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 200 V | 250 V |
| ESR (Equivalent Series Resistance) | 286mOhm @ 100Hz | 247mOhm @ 100Hz |
| Lifetime @ Temp. | 11000 Hrs @ 85°C | 11000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 2.6 A @ 100 Hz | 3 A @ 100 Hz |
| Ripple Current @ High Frequency | 4.3 A @ 10 kHz | 4.5 A @ 10 kHz |
| Impedance | 227 mOhms | 187 mOhms |
| Lead Spacing | 0.504" (12.80mm) | 0.504" (12.80mm) |
| Size / Dimension | 1.417" Dia (36.00mm) | 1.417" Dia (36.00mm) |
| Height - Seated (Max) | 2.126" (54.00mm) | 2.047" (52.00mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals |
