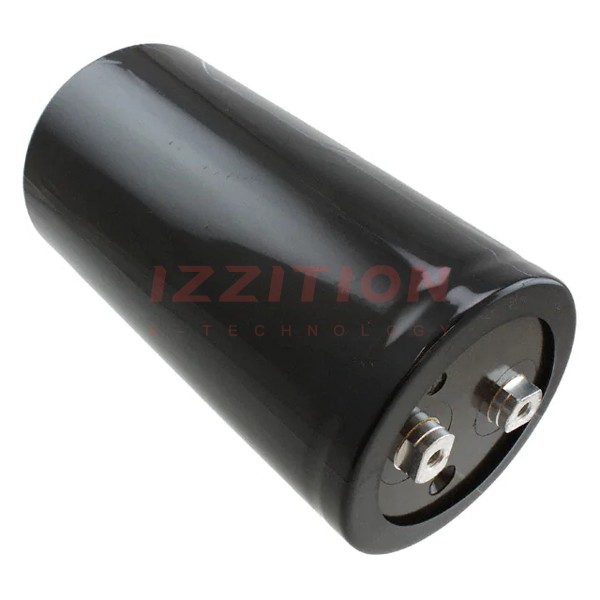

KEMET-ALS30A332NP500 - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	3300 µF
Tolerance:	±20%
Voltage - Rated:	500 V
ESR (Equivalent Series Resistance):	54mOhm @ 100Hz
Lifetime @ Temp.:	20000 Hrs @ 85°C
Operating Temperature:	-40°C ~ 85°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	15.3 A @ 100 Hz
Ripple Current @ High Frequency:	22.6 A @ 10 kHz
Impedance:	39 mOhms
Lead Spacing:	1.252" (31.80mm)
Size / Dimension:	3.032" Dia (77.00mm)
Height - Seated (Max):	5.827" (148.00mm)
Surface Mount Land Size:	-
Mounting Type:	Chassis Mount
Package / Case:	Radial, Can - Screw Terminals

KEMET ALS30A332NP500
