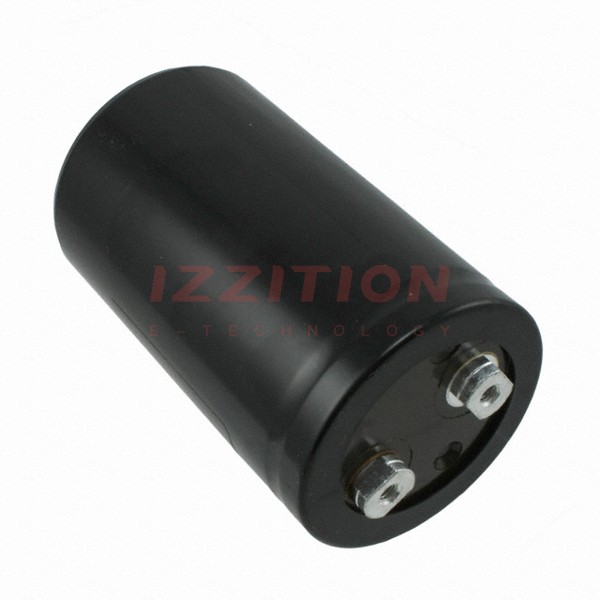

| Part Number | ALS30A332LF400 | ALS30A332NF400 |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Capacitance | 3300 µF | 3300 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 400 V | 400 V |
| ESR (Equivalent Series Resistance) | 54mOhm @ 100Hz | 49mOhm @ 100Hz |
| Lifetime @ Temp. | 19000 Hrs @ 85°C | 20000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 11.81 A @ 100 Hz | 13.4 A @ 100 Hz |
| Ripple Current @ High Frequency | 20.54 A @ 10 kHz | 21.3 A @ 10 kHz |
| Impedance | 36 mOhms | 36 mOhms |
| Lead Spacing | 1.122" (28.50mm) | 1.252" (31.80mm) |
| Size / Dimension | 2.500" Dia (63.50mm) | 3.031" Dia (77.00mm) |
| Height - Seated (Max) | 4.213" (107.00mm) | 4.134" (105.00mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals |
