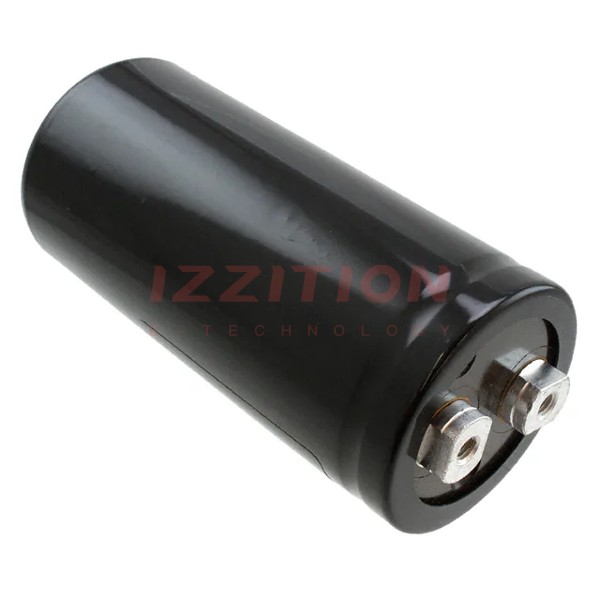

| Part Number | ALS30A152KF450 | ALS30A102KF450 | ALS30A152KF400 |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Capacitance | 1500 µF | 1000 µF | 1500 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 450 V | 450 V | 400 V |
| ESR (Equivalent Series Resistance) | 93mOhm @ 100Hz | 118mOhm @ 100Hz | 92mOhm @ 100Hz |
| Lifetime @ Temp. | 18000 Hrs @ 85°C | 18000 Hrs @ 85°C | 18000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar | Polar |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | - | 6.5 A @ 100 Hz | 7.8 A @ 100 Hz |
| Ripple Current @ High Frequency | - | 12.6 A @ 10 kHz | 13.1 A @ 10 kHz |
| Impedance | 65 mOhms | 79 mOhms | 65 mOhms |
| Lead Spacing | 0.874" (22.20mm) | 0.874" (22.20mm) | 0.874" (22.20mm) |
| Size / Dimension | 2.008" Dia (51.00mm) | 2.008" Dia (51.00mm) | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 4.213" (107.00mm) | 4.134" (105.00mm) | 4.213" (107.00mm) |
| Surface Mount Land Size | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals |
