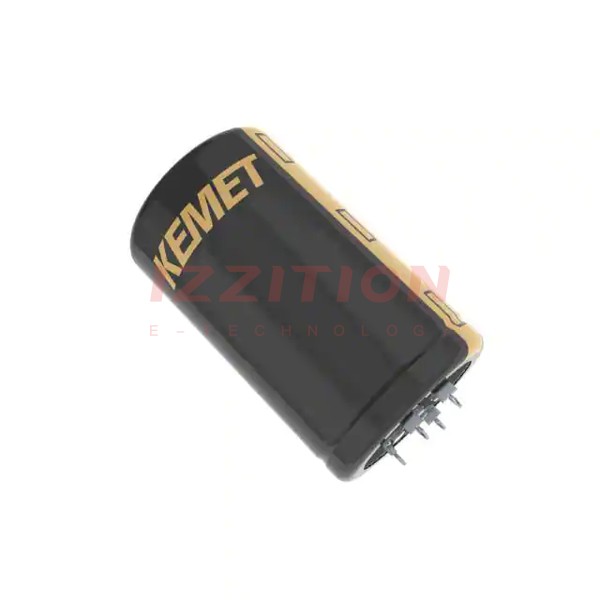

| Part Number | ALF40C822ED063 | ALF40G822ED063 | ALF40C822DD063 |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Capacitance | 8200 µF | 8200 µF | 8200 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 63 V | 63 V | 63 V |
| ESR (Equivalent Series Resistance) | 72mOhm @ 100Hz | 72mOhm @ 100Hz | 116mOhm @ 100Hz |
| Lifetime @ Temp. | 9000 Hrs @ 105°C | 9000 Hrs @ 105°C | 8000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar | Polar |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 5.01 A @ 100 Hz | 5.01 A @ 100 Hz | 2.87 A @ 100 Hz |
| Ripple Current @ High Frequency | 5.12 A @ 10 kHz | 5.12 A @ 10 kHz | 3.33 A @ 10 kHz |
| Impedance | 64 mOhms | 64 mOhms | 99 mOhms |
| Lead Spacing | 0.886" (22.50mm) | 0.984" (25.00mm) | 0.886" (22.50mm) |
| Size / Dimension | 1.575" Dia (40.00mm) | 1.575" Dia (40.00mm) | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) | 1.654" (42.00mm) | 1.654" (42.00mm) |
| Surface Mount Land Size | - | - | - |
| Mounting Type | Through Hole, Press-Fit | Through Hole, Press-Fit | Through Hole, Press-Fit |
| Package / Case | Radial, Can - Press-Fit - 4 Lead | Radial, Can - Press-Fit - 5 Lead | Radial, Can - Press-Fit - 4 Lead |
