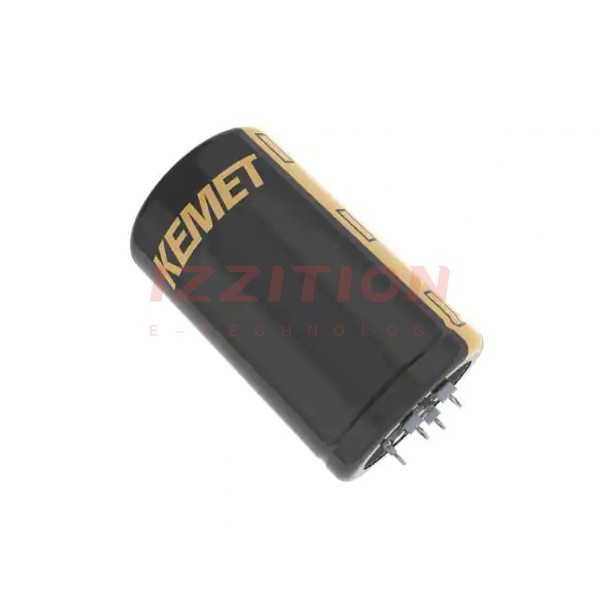

| Part Number | ALF40C562FP200 | ALF40G562FP200 |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Capacitance | 5600 µF | 5600 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 200 V | 200 V |
| ESR (Equivalent Series Resistance) | 40mOhm @ 100Hz | 40mOhm @ 100Hz |
| Lifetime @ Temp. | 9000 Hrs @ 105°C | 9000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 8.68 A @ 100 Hz | 8.68 A @ 100 Hz |
| Ripple Current @ High Frequency | 12.54 A @ 10 kHz | 12.54 A @ 10 kHz |
| Impedance | 28 mOhms | 28 mOhms |
| Lead Spacing | 0.886" (22.50mm) | 0.984" (25.00mm) |
| Size / Dimension | 1.772" Dia (45.00mm) | 1.772" Dia (45.00mm) |
| Height - Seated (Max) | 4.213" (107.00mm) | 4.213" (107.00mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole, Press-Fit | Through Hole, Press-Fit |
| Package / Case | Radial, Can - Press-Fit - 4 Lead | Radial, Can - Press-Fit - 5 Lead |
