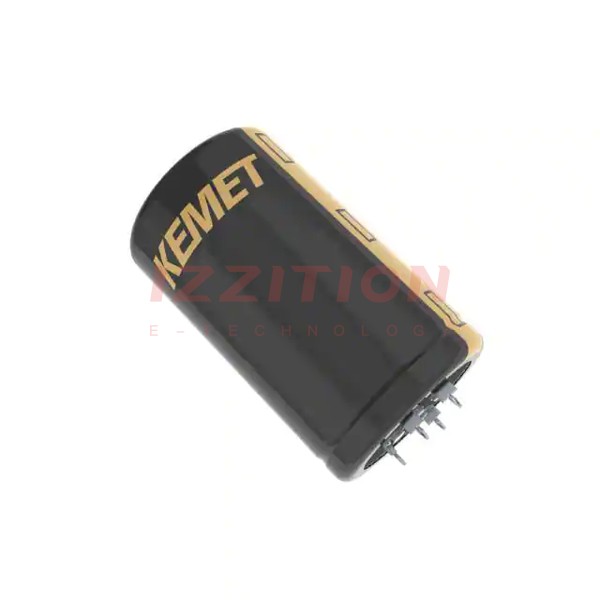

| Part Number | ALF40C561DF350 | ALF40C561DH350 | ALF40C561EF350 |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Capacitance | 560 µF | 560 µF | 560 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 350 V | 350 V | 350 V |
| ESR (Equivalent Series Resistance) | 224mOhm @ 100Hz | 224mOhm @ 100Hz | 216mOhm @ 100Hz |
| Lifetime @ Temp. | 8000 Hrs @ 105°C | 8000 Hrs @ 105°C | 9000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar | Polar |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 2.57 A @ 100 Hz | 3.11 A @ 100 Hz | 3.41 A @ 100 Hz |
| Ripple Current @ High Frequency | 4.44 A @ 10 kHz | 5.7 A @ 10 kHz | 7.27 A @ 10 kHz |
| Impedance | 155 mOhms | 155 mOhms | 141 mOhms |
| Lead Spacing | 0.886" (22.50mm) | 0.886" (22.50mm) | 0.886" (22.50mm) |
| Size / Dimension | 1.378" Dia (35.00mm) | 1.378" Dia (35.00mm) | 1.575" Dia (40.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) | 2.441" (62.00mm) | 2.047" (52.00mm) |
| Surface Mount Land Size | - | - | - |
| Mounting Type | Through Hole, Press-Fit | Through Hole, Press-Fit | Through Hole, Press-Fit |
| Package / Case | Radial, Can - Press-Fit - 4 Lead | Radial, Can - Press-Fit - 4 Lead | Radial, Can - Press-Fit - 4 Lead |
