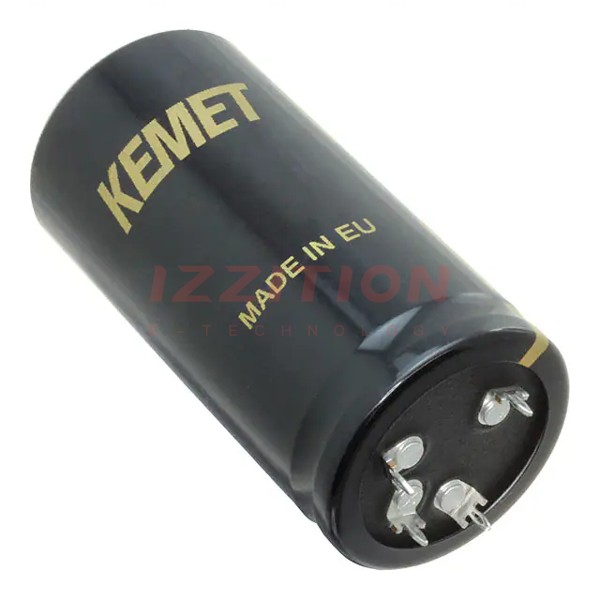

| Part Number | ALF20C561DF400 | ALF20C561DF450 | ALF20C561DH400 | ALF20C561EF400 |
|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active |
| Capacitance | 560 µF | 560 µF | 560 µF | 560 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 400 V | 450 V | 400 V | 400 V |
| ESR (Equivalent Series Resistance) | 278mOhm @ 100Hz | 266mOhm @ 100Hz | 264mOhm @ 100Hz | 216mOhm @ 100Hz |
| Lifetime @ Temp. | 15000 Hrs @ 85°C | 15000 Hrs @ 85°C | 15000 Hrs @ 85°C | 18000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 2.57 A @ 100 Hz | 2.7 A @ 100 Hz | 3.01 A @ 100 Hz | 3.41 A @ 100 Hz |
| Ripple Current @ High Frequency | 4.04 A @ 10 kHz | 4.74 A @ 10 kHz | 5.11 A @ 10 kHz | 6.19 A @ 10 kHz |
| Impedance | 180 mOhms | 172 mOhms | 184 mOhms | 141 mOhms |
| Lead Spacing | 0.886" (22.50mm) | 0.886" (22.50mm) | 0.886" (22.50mm) | 0.886" (22.50mm) |
| Size / Dimension | 1.378" Dia (35.00mm) | 1.378" Dia (35.00mm) | 1.378" Dia (35.00mm) | 1.575" Dia (40.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) | 2.047" (52.00mm) | 2.441" (62.00mm) | 2.047" (52.00mm) |
| Surface Mount Land Size | - | - | - | - |
| Mounting Type | Through Hole, Press-Fit | Through Hole, Press-Fit | Through Hole, Press-Fit | Through Hole, Press-Fit |
| Package / Case | Radial, Can - Press-Fit - 4 Lead | Radial, Can - Press-Fit - 4 Lead | Radial, Can - Press-Fit - 4 Lead | Radial, Can - Press-Fit - 4 Lead |
