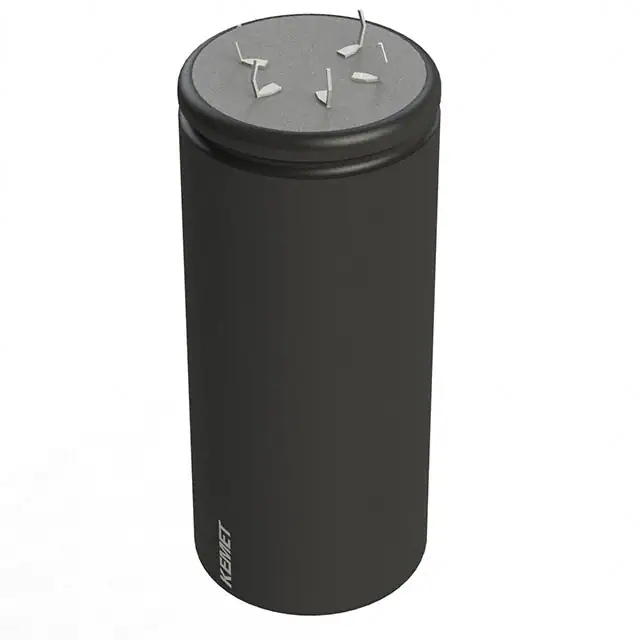

| Part Number | ALC80G822KP200 | ALC80H822KP200 |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Capacitance | 8200 µF | 8200 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 200 V | 200 V |
| ESR (Equivalent Series Resistance) | 31mOhm @ 100Hz | 31mOhm @ 100Hz |
| Lifetime @ Temp. | 9000 Hrs @ 105°C | 9000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 11.15 A @ 100 Hz | 11.15 A @ 100 Hz |
| Ripple Current @ High Frequency | 17.54 A @ 10 kHz | 17.54 A @ 10 kHz |
| Impedance | 20 mOhms | 20 mOhms |
| Lead Spacing | 0.984" (25.00mm) | 0.984" (25.00mm) |
| Size / Dimension | 1.969" Dia (50.00mm) | 1.969" Dia (50.00mm) |
| Height - Seated (Max) | 4.213" (107.00mm) | 4.213" (107.00mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can - Snap-In - 5 Lead | Radial, Can - Snap-In - 5 Lead |
