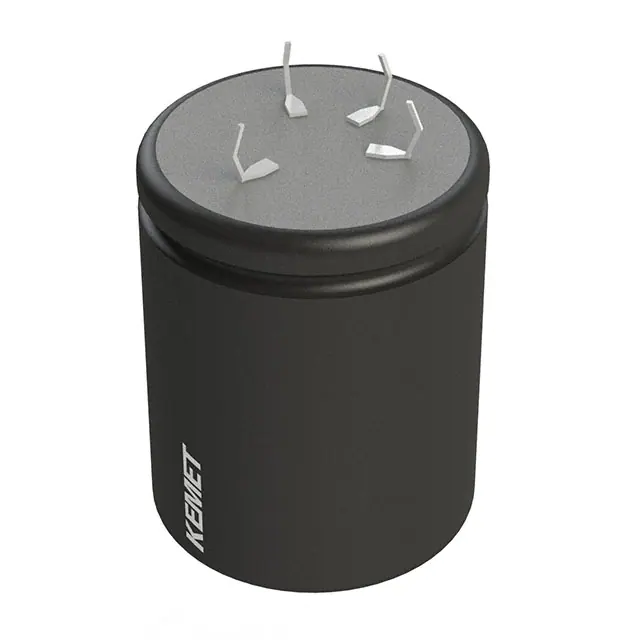

KEMET-ALC80E513FP063 - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	51000 µF
Tolerance:	±20%
Voltage - Rated:	63 V
ESR (Equivalent Series Resistance):	11mOhm @ 100Hz
Lifetime @ Temp.:	9000 Hrs @ 105°C
Operating Temperature:	-40°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	16.83 A @ 100 Hz
Ripple Current @ High Frequency:	19.59 A @ 10 kHz
Impedance:	9 mOhms
Lead Spacing:	0.886" (22.50mm)
Size / Dimension:	1.772" Dia (45.00mm)
Height - Seated (Max):	4.213" (107.00mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can - Snap-In - 4 Lead

KEMET ALC80E513FP063
