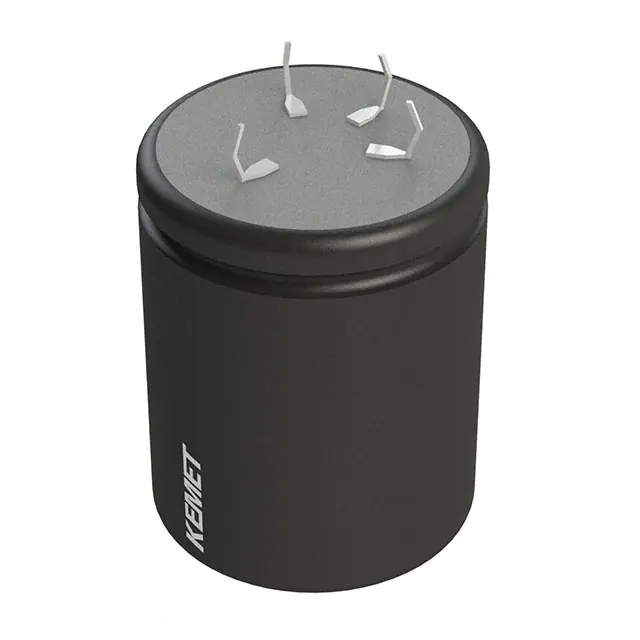

KEMET-ALC80E273EF040 - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	27000 µF
Tolerance:	±20%
Voltage - Rated:	40 V
ESR (Equivalent Series Resistance):	26mOhm @ 100Hz
Lifetime @ Temp.:	9000 Hrs @ 105°C
Operating Temperature:	-40°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	9.9 A @ 100 Hz
Ripple Current @ High Frequency:	11.6 A @ 10 kHz
Impedance:	22 mOhms
Lead Spacing:	0.886" (22.50mm)
Size / Dimension:	1.575" Dia (40.00mm)
Height - Seated (Max):	2.047" (52.00mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can - Snap-In - 4 Lead

KEMET ALC80E273EF040
