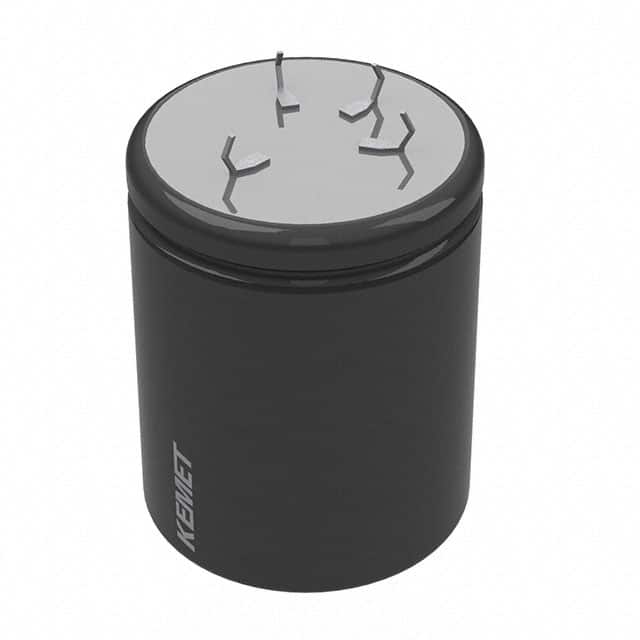

| Part Number | ALC70C103EH100 | ALC70D103EH100 |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Capacitance | 10000 µF | 10000 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 100 V | 100 V |
| ESR (Equivalent Series Resistance) | 34mOhm @ 100Hz | 34mOhm @ 100Hz |
| Lifetime @ Temp. | 18000 Hrs @ 85°C | 18000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 8.7 A @ 100 Hz | 8.7 A @ 100 Hz |
| Ripple Current @ High Frequency | 10.35 A @ 10 kHz | 10.35 A @ 10 kHz |
| Impedance | 29 mOhms | 29 mOhms |
| Lead Spacing | 0.886" (22.50mm) | 0.394" (10.00mm) |
| Size / Dimension | 1.575" Dia (40.00mm) | 1.575" Dia (40.00mm) |
| Height - Seated (Max) | 2.441" (62.00mm) | 2.441" (62.00mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can - Snap-In - 4 Lead | Radial, Can - Snap-In |
