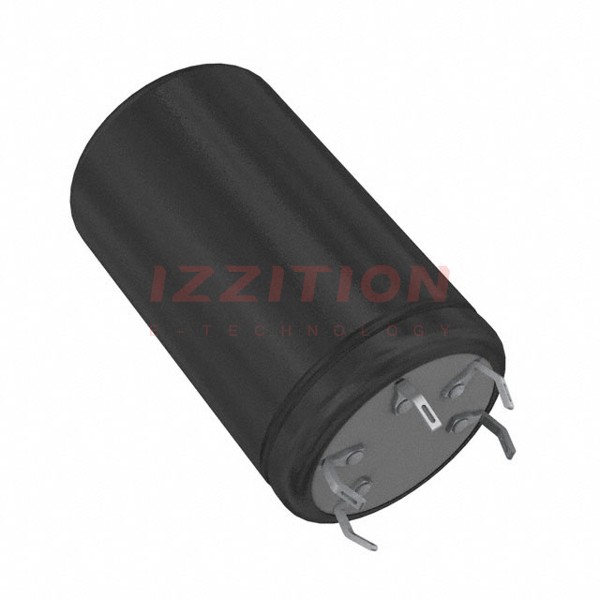

KEMET-ALC40G471EG500 - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	470 µF
Tolerance:	±20%
Voltage - Rated:	500 V
ESR (Equivalent Series Resistance):	480mOhm @ 100Hz
Lifetime @ Temp.:	9000 Hrs @ 105°C
Operating Temperature:	-40°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	3.3 A @ 100 Hz
Ripple Current @ High Frequency:	6.42 A @ 10 kHz
Impedance:	390 mOhms
Lead Spacing:	0.984" (25.00mm)
Size / Dimension:	1.575" Dia (40.00mm)
Height - Seated (Max):	2.244" (57.00mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can - Snap-In - 5 Lead

KEMET ALC40G471EG500
