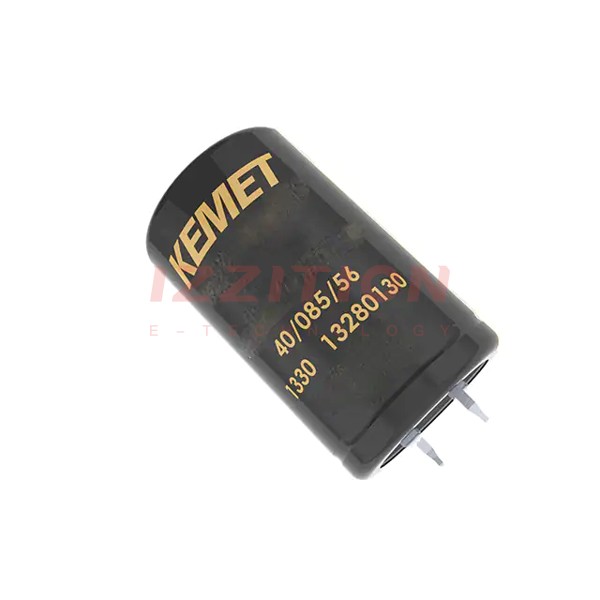

KEMET-ALC10C153EB035 - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	15000 µF
Tolerance:	±20%
Voltage - Rated:	35 V
ESR (Equivalent Series Resistance):	87mOhm @ 100Hz
Lifetime @ Temp.:	18000 Hrs @ 85°C
Operating Temperature:	-40°C ~ 85°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	4.24 A @ 100 Hz
Ripple Current @ High Frequency:	4.31 A @ 10 kHz
Impedance:	78 mOhms
Lead Spacing:	0.886" (22.50mm)
Size / Dimension:	1.575" Dia (40.00mm)
Height - Seated (Max):	1.260" (32.00mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can - Snap-In - 4 Lead

KEMET ALC10C153EB035
