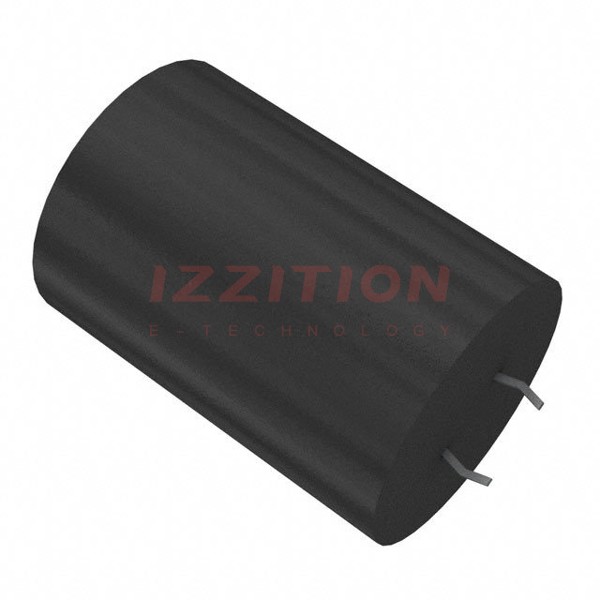

| Part Number | ALC10A471EH500 | ALC10A471EH550 |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Capacitance | 470 µF | 470 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 500 V | 550 V |
| ESR (Equivalent Series Resistance) | 285mOhm @ 100Hz | 742mOhm @ 100Hz |
| Lifetime @ Temp. | 18000 Hrs @ 85°C | 18000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 3.56 A @ 100 Hz | 3.05 A @ 100 Hz |
| Ripple Current @ High Frequency | 6.43 A @ 10 kHz | 4.93 A @ 10 kHz |
| Impedance | 201 mOhms | 648 mOhms |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Size / Dimension | 1.575" Dia (40.00mm) | 1.575" Dia (40.00mm) |
| Height - Seated (Max) | 2.441" (62.00mm) | 2.441" (62.00mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can - Snap-In | Radial, Can - Snap-In |
