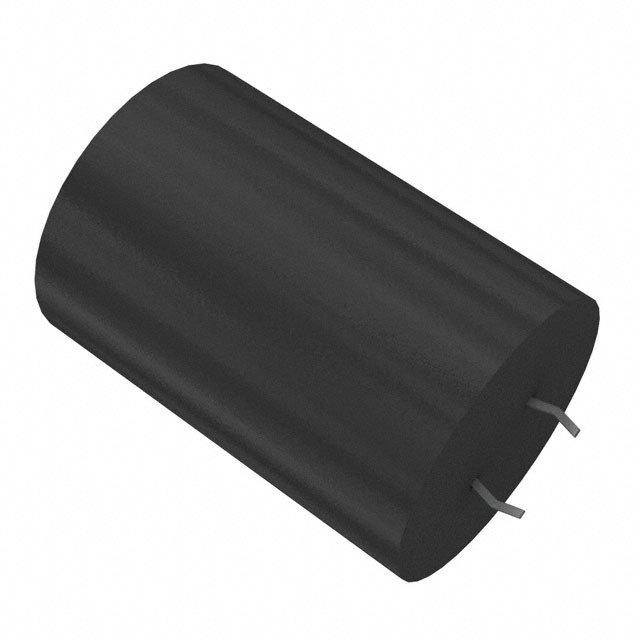

KEMET-ALC10A331DC400 - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	330 µF
Tolerance:	±20%
Voltage - Rated:	400 V
ESR (Equivalent Series Resistance):	461mOhm @ 100Hz
Lifetime @ Temp.:	15000 Hrs @ 85°C
Operating Temperature:	-40°C ~ 85°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	1.73 A @ 100 Hz
Ripple Current @ High Frequency:	2.92 A @ 10 kHz
Impedance:	320 mOhms
Lead Spacing:	0.394" (10.00mm)
Size / Dimension:	1.378" Dia (35.00mm)
Height - Seated (Max):	1.457" (37.00mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can - Snap-In

KEMET ALC10A331DC400
