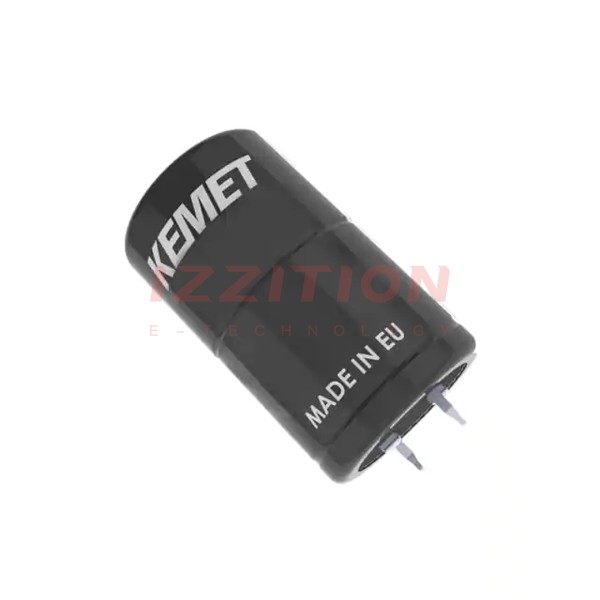

| Part Number | ALA8DD471EE500 | ALA8DA471EE500 |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Capacitance | 470 µF | 470 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 500 V | 500 V |
| ESR (Equivalent Series Resistance) | 428mOhm @ 100Hz | 428mOhm @ 100Hz |
| Lifetime @ Temp. | 9000 Hrs @ 105°C | 9000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive |
| Ripple Current @ Low Frequency | 2.9 A @ 100 Hz | 2.9 A @ 100 Hz |
| Ripple Current @ High Frequency | 6.3 A @ 10 kHz | 6.3 A @ 10 kHz |
| Impedance | 312 mOhms | 312 mOhms |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Size / Dimension | 1.575" Dia (40.00mm) | 1.575" Dia (40.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) | 1.850" (47.00mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can - Snap-In | Radial, Can - Snap-In |
