KEMET-ALA7DA361DE550 - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	360 µF
Tolerance:	±20%
Voltage - Rated:	550 V
ESR (Equivalent Series Resistance):	477mOhm @ 100Hz
Lifetime @ Temp.:	15000 Hrs @ 85°C
Operating Temperature:	-40°C ~ 85°C
Polarization:	Polar
Ratings:	AEC-Q200
Applications:	Automotive
Ripple Current @ Low Frequency:	2.3 A @ 100 Hz
Ripple Current @ High Frequency:	4.8 A @ 10 kHz
Impedance:	331 mOhms
Lead Spacing:	0.394" (10.00mm)
Size / Dimension:	1.575" Dia (40.00mm)
Height - Seated (Max):	3.031" (77.00mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can - Snap-In

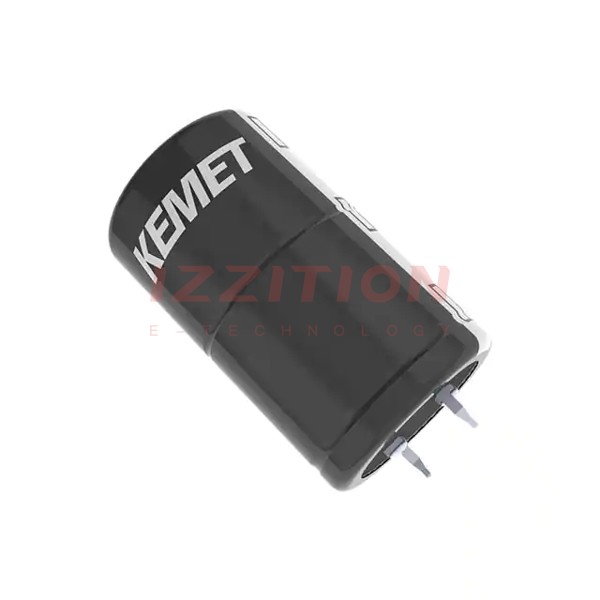

KEMET ALA7DA361DE550
