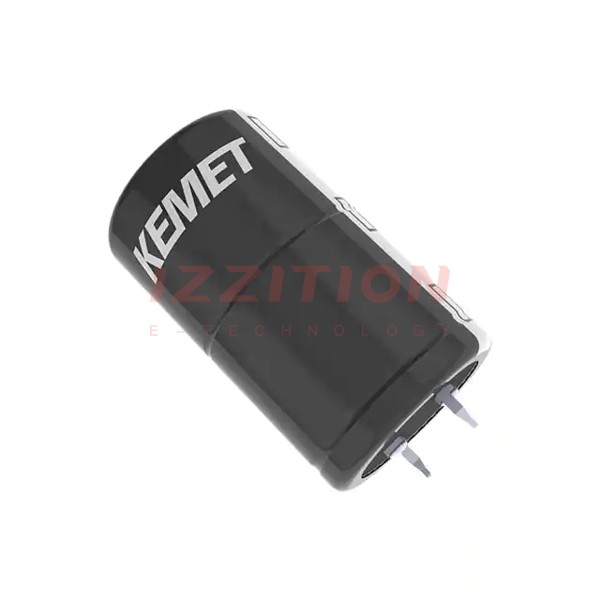

KEMET-ALA7DA331EE600 - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	330 µF
Tolerance:	±20%
Voltage - Rated:	600 V
ESR (Equivalent Series Resistance):	399mOhm @ 100Hz
Lifetime @ Temp.:	18000 Hrs @ 85°C
Operating Temperature:	-40°C ~ 85°C
Polarization:	Polar
Ratings:	AEC-Q200
Applications:	Automotive
Ripple Current @ Low Frequency:	2.7 A @ 100 Hz
Ripple Current @ High Frequency:	5.4 A @ 10 kHz
Impedance:	277 mOhms
Lead Spacing:	0.394" (10.00mm)
Size / Dimension:	1.575" Dia (40.00mm)
Height - Seated (Max):	1.850" (47.00mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can - Snap-In

KEMET ALA7DA331EE600
