KEMET-ALA7DA161CD600 - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	160 µF
Tolerance:	±20%
Voltage - Rated:	600 V
ESR (Equivalent Series Resistance):	797mOhm @ 100Hz
Lifetime @ Temp.:	13000 Hrs @ 85°C
Operating Temperature:	-40°C ~ 85°C
Polarization:	Polar
Ratings:	AEC-Q200
Applications:	Automotive
Ripple Current @ Low Frequency:	1.6 A @ 100 Hz
Ripple Current @ High Frequency:	3.5 A @ 10 kHz
Impedance:	550 mOhms
Lead Spacing:	0.394" (10.00mm)
Size / Dimension:	1.181" Dia (30.00mm)
Height - Seated (Max):	1.654" (42.00mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can - Snap-In

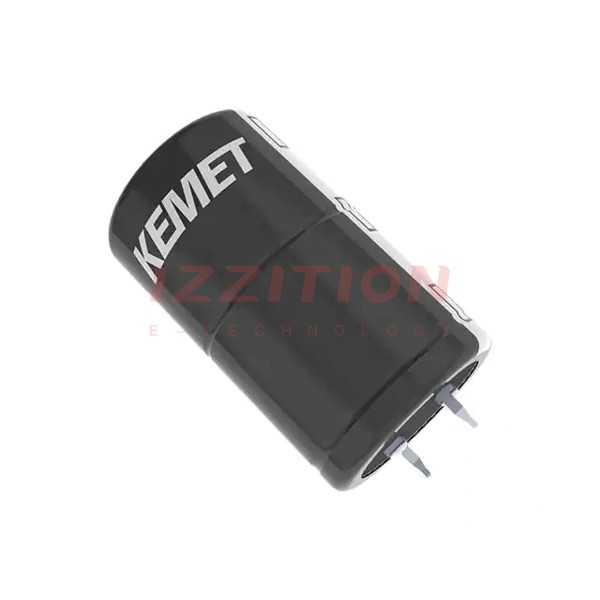

KEMET ALA7DA161CD600
