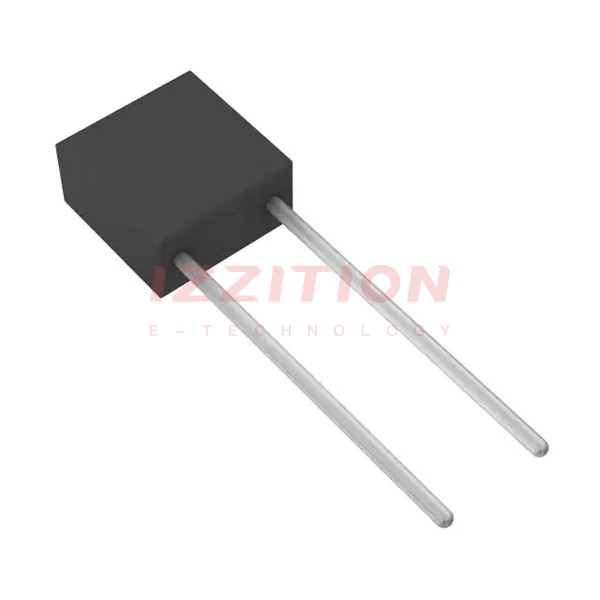

| Part Number | ACR05B102KGS | ACR05B103KGS | ACR05B100KGS | ACR05B101KGS | ACR05B102JGS |
|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 1000 pF | 10000 pF | 10 pF | 100 pF | 1000 pF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±5% |
| Voltage - Rated | 50V | 50V | 50V | 50V | 50V |
| Temperature Coefficient | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 |
| Operating Temperature | -55°C ~ 200°C | -55°C ~ 200°C | -55°C ~ 200°C | -55°C ~ 200°C | -55°C ~ 200°C |
| Features | High Temperature | High Temperature | High Temperature | High Temperature | High Temperature |
| Ratings | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.200" L x 0.100" W (5.08mm x 2.54mm) | 0.200" L x 0.100" W (5.08mm x 2.54mm) | 0.200" L x 0.100" W (5.08mm x 2.54mm) | 0.200" L x 0.100" W (5.08mm x 2.54mm) | 0.200" L x 0.100" W (5.08mm x 2.54mm) |
| Height - Seated (Max) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) |
| Thickness (Max) | - | - | - | - | - |
| Lead Spacing | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) |
| Lead Style | Straight | Straight | Straight | Straight | Straight |
