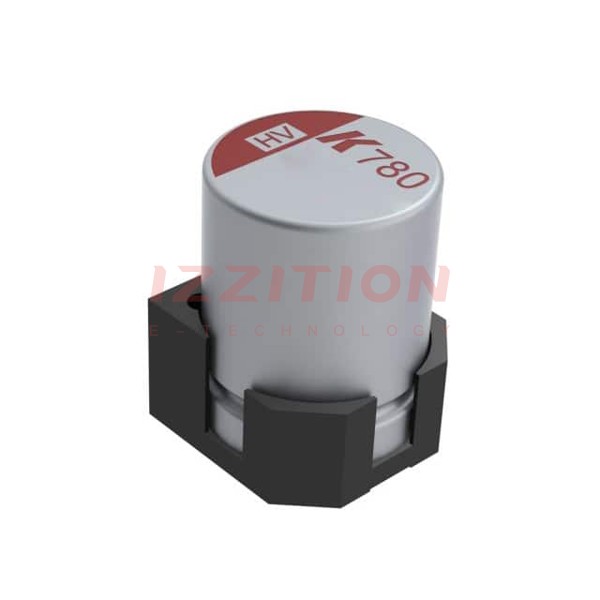

| Part Number | A780MS566M1JLAV030 | A780MS566M1JLAS030 |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Type | Hybrid | Hybrid |
| Capacitance | 56 µF | 56 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 63 V | 63 V |
| ESR (Equivalent Series Resistance) | 30mOhm | 30mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 125°C | 3000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Ratings | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive |
| Features | - | - |
| Ripple Current @ Low Frequency | 330 mA @ 100 Hz | 330 mA @ 100 Hz |
| Ripple Current @ High Frequency | 1.5 A @ 100 kHz | 1.5 A @ 100 kHz |
| Impedance | - | - |
| Lead Spacing | - | - |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.394" Dia x 0.480" L (10.00mm x 12.20mm) |
| Height - Seated (Max) | 0.500" (12.70mm) | 0.500" (12.70mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD |
