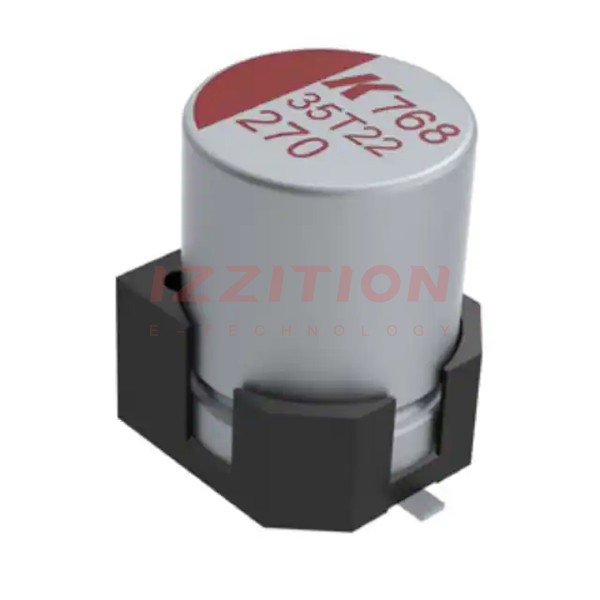

| Part Number | A768MS107M1HLAV024 | A768MS127M1HLAV024 | A768MS157M1HLAV024 | A768MS107M1HLAE024 |
|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active |
| Type | Polymer | Polymer | Polymer | Polymer |
| Capacitance | 100 µF | 120 µF | 150 µF | 100 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 50 V | 50 V | 50 V | 50 V |
| ESR (Equivalent Series Resistance) | 24mOhm | 24mOhm | 24mOhm | 24mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 125°C | 2000 Hrs @ 125°C | 2000 Hrs @ 125°C | 2000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | - |
| Applications | Automotive | Automotive | Automotive | General Purpose |
| Features | - | - | - | - |
| Ripple Current @ Low Frequency | 107.5 mA @ 120 Hz | 107.5 mA @ 120 Hz | 107.5 mA @ 120 Hz | 107.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.15 A @ 100 kHz | 2.15 A @ 100 kHz | 2.15 A @ 100 kHz | 2.15 A @ 100 kHz |
| Impedance | - | - | - | - |
| Lead Spacing | - | - | - | - |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.520" (13.20mm) | 0.520" (13.20mm) | 0.520" (13.20mm) | 0.512" (13.00mm) |
| Surface Mount Land Size | 0.425" L x 0.406" W (10.80mm x 10.30mm) | 0.425" L x 0.406" W (10.80mm x 10.30mm) | 0.425" L x 0.406" W (10.80mm x 10.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD |
