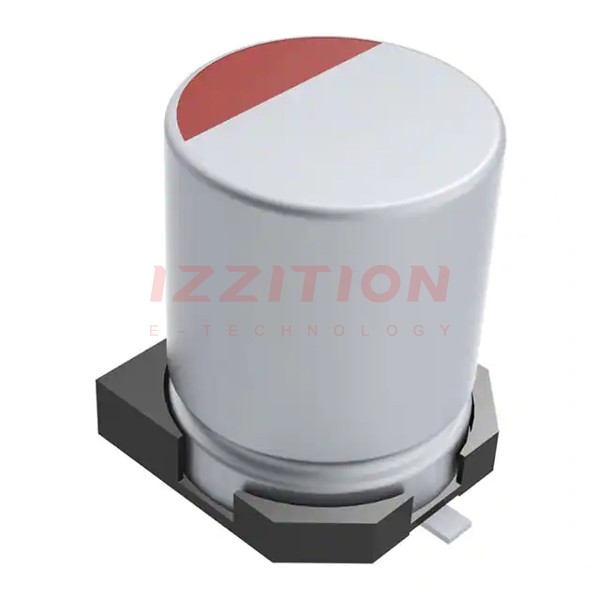

| Part Number | A768EB336M1GLAS045 | A768EB396M1GLAS045 | A768EB336M1GLAE045 |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Type | Polymer | Polymer | Polymer |
| Capacitance | 33 µF | 39 µF | 33 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 40 V | 40 V | 40 V |
| ESR (Equivalent Series Resistance) | 45mOhm | 45mOhm | 45mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 125°C | 2000 Hrs @ 125°C | 2000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Ratings | AEC-Q200 | AEC-Q200 | - |
| Applications | Automotive | Automotive | General Purpose |
| Features | - | - | - |
| Ripple Current @ Low Frequency | 57.5 mA @ 120 Hz | 57.5 mA @ 120 Hz | 57.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.15 A @ 100 kHz | 1.15 A @ 100 kHz | 1.15 A @ 100 kHz |
| Impedance | - | - | - |
| Lead Spacing | - | - | - |
| Size / Dimension | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD |
