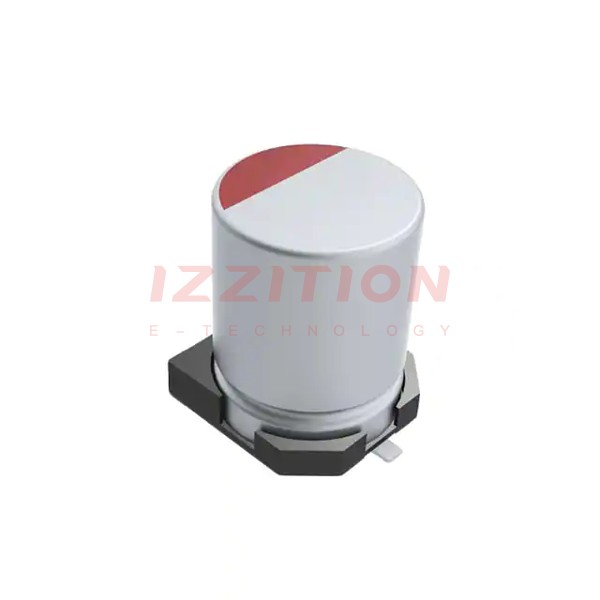

| Part Number | A767MU187M1VLAE028 | A767MU157M1VLAE028 |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Type | Polymer | Polymer |
| Capacitance | 180 µF | 150 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 35 V | 35 V |
| ESR (Equivalent Series Resistance) | 28mOhm | 28mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Features | - | - |
| Ripple Current @ Low Frequency | 130 mA @ 120 Hz | 130 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.6 A @ 100 kHz | 2.6 A @ 100 kHz |
| Impedance | - | - |
| Lead Spacing | - | - |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.508" (12.90mm) | 0.508" (12.90mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD |
