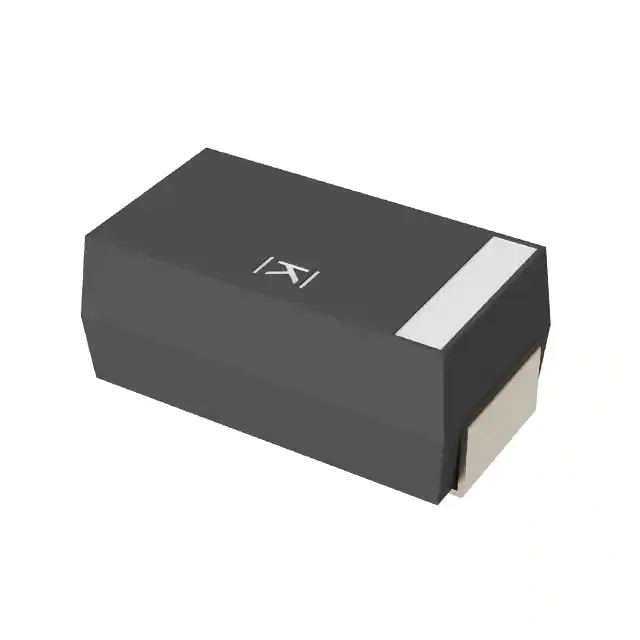

| Part Number | A700D157M006ATE010 | A700X157M006ATE010 | A700D157M006ATE015 | A700D157M006ATE012 |
|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active |
| Type | Polymer | Polymer | Polymer | Polymer |
| Capacitance | 150 µF | 150 µF | 150 µF | 150 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 6.3 V | 6.3 V | 6.3 V | 6.3 V |
| ESR (Equivalent Series Resistance) | 10mOhm | 10mOhm | 15mOhm | 12mOhm |
| Lifetime @ Temp. | - | - | 2000 Hrs @ 125°C | 2000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Ratings | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Features | - | - | - | - |
| Ripple Current @ Low Frequency | - | - | - | - |
| Ripple Current @ High Frequency | 5 A @ 100 kHz | 4.7 A @ 100 kHz | 4.1 A @ 100 kHz | 4.6 A @ 100 kHz |
| Impedance | - | - | - | - |
| Lead Spacing | - | - | - | - |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Height - Seated (Max) | 0.122" (3.10mm) | 0.169" (4.30mm) | 0.122" (3.10mm) | 0.122" (3.10mm) |
| Surface Mount Land Size | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2917 (7343 Metric) | 2917 (7343 Metric) | 2917 (7343 Metric) | 2917 (7343 Metric) |
