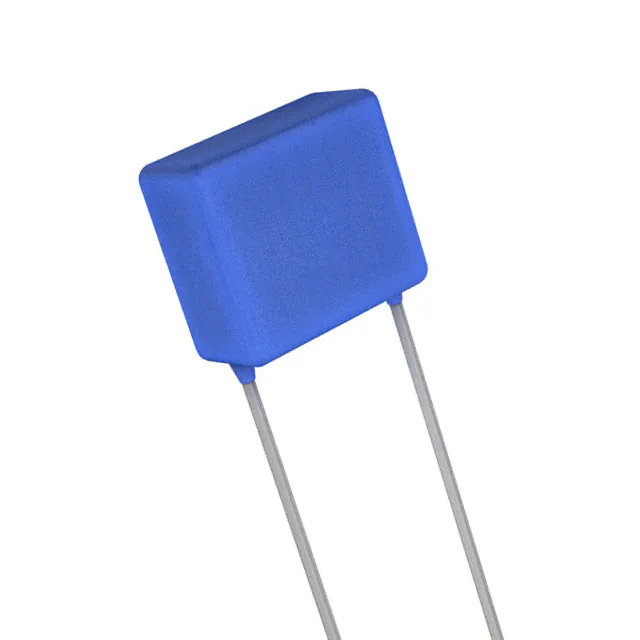

| Part Number | 50HV24B102KC | 50HV24B102K |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Obsolete |
| Capacitance | 1000 pF | 1000 pF |
| Tolerance | ±10% | ±10% |
| Voltage - Rated | 5000V (5kV) | 5000V (5kV) |
| Temperature Coefficient | X7R | X7R |
| Operating Temperature | -55°C ~ 200°C | -55°C ~ 200°C |
| Features | High Voltage, High Temperature | High Voltage, High Temperature |
| Ratings | - | - |
| Applications | Downhole | Downhole |
| Failure Rate | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial | Radial |
| Size / Dimension | 0.570" L x 0.270" W (14.48mm x 6.86mm) | 0.570" L x 0.270" W (14.48mm x 6.86mm) |
| Height - Seated (Max) | 0.500" (12.70mm) | 0.500" (12.70mm) |
| Thickness (Max) | - | - |
| Lead Spacing | 0.475" (12.06mm) | 0.475" (12.06mm) |
| Lead Style | Straight | Straight |
