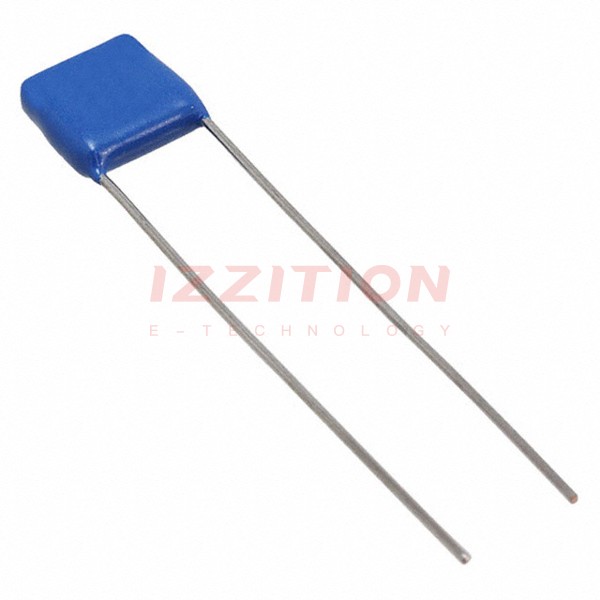

| Part Number | 30HV12N221KN | 30HV13N221KN |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Capacitance | 220 pF | 220 pF |
| Tolerance | ±10% | ±10% |
| Voltage - Rated | 3000V (3kV) | 3000V (3kV) |
| Temperature Coefficient | C0G, NP0 | C0G, NP0 |
| Operating Temperature | -55°C ~ 200°C | -55°C ~ 200°C |
| Features | High Voltage, High Temperature | High Voltage, High Temperature |
| Ratings | - | - |
| Applications | Downhole | Downhole |
| Failure Rate | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial | Radial |
| Size / Dimension | 0.420" L x 0.250" W (10.67mm x 6.35mm) | 0.520" L x 0.300" W (13.21mm x 7.62mm) |
| Height - Seated (Max) | 0.400" (10.16mm) | 0.500" (12.70mm) |
| Thickness (Max) | - | - |
| Lead Spacing | 0.300" (7.62mm) | 0.400" (10.15mm) |
| Lead Style | Straight | Straight |
