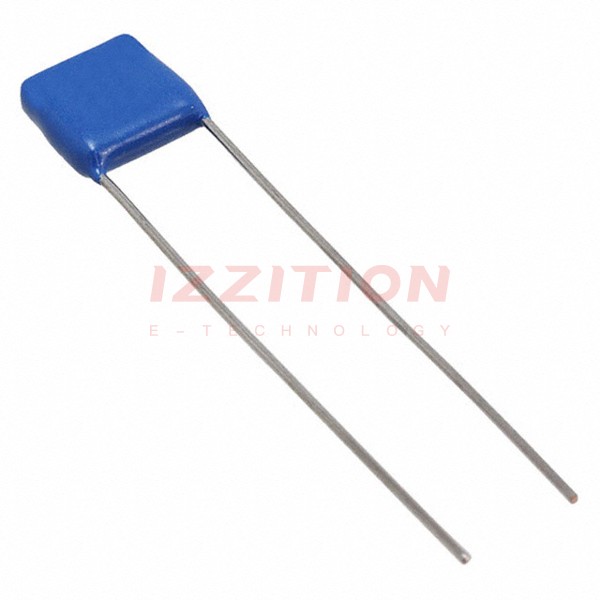

| Part Number | 30HV12N101KN | 30HV12N102KN | 30HV11N101KN |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Capacitance | 100 pF | 1000 pF | 100 pF |
| Tolerance | ±10% | ±10% | ±10% |
| Voltage - Rated | 3000V (3kV) | 3000V (3kV) | 3000V (3kV) |
| Temperature Coefficient | C0G, NP0 | C0G, NP0 | C0G, NP0 |
| Operating Temperature | -55°C ~ 200°C | -55°C ~ 200°C | -55°C ~ 200°C |
| Features | High Voltage, High Temperature | High Voltage, High Temperature | High Voltage, High Temperature |
| Ratings | - | - | - |
| Applications | Downhole | Downhole | Downhole |
| Failure Rate | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 0.420" L x 0.250" W (10.67mm x 6.35mm) | 0.420" L x 0.250" W (10.67mm x 6.35mm) | 0.320" L x 0.250" W (8.13mm x 6.35mm) |
| Height - Seated (Max) | 0.400" (10.16mm) | 0.400" (10.16mm) | - |
| Thickness (Max) | - | - | - |
| Lead Spacing | 0.300" (7.62mm) | 0.300" (7.62mm) | 0.200" (5.08mm) |
| Lead Style | Straight | Straight | Straight |
