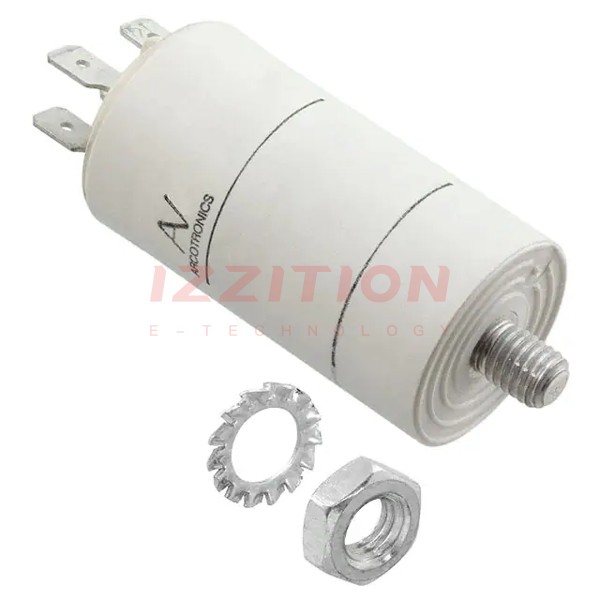

| Part Number | 274AC34400AA0J | 274AC34100AA0J |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Capacitance | 4 µF | 1 µF |
| Tolerance | ±5% | ±5% |
| Voltage Rating - AC | 470V | 470V |
| Voltage Rating - DC | - | - |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C |
| Mounting Type | Chassis, Stud Mount | Chassis, Stud Mount |
| Package / Case | Radial, Can | Radial, Can |
| Size / Dimension | 1.181" Dia (30.00mm) | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 2.303" (58.50mm) | 2.303" (58.50mm) |
| Termination | Quick Connect - 0.250" (6.3mm) | Quick Connect - 0.250" (6.3mm) |
| Lead Spacing | 0.528" (13.40mm) | 0.528" (13.40mm) |
| Applications | Motor Run; Motor Start | Motor Run; Motor Start |
| Ratings | - | - |
| Features | - | - |
