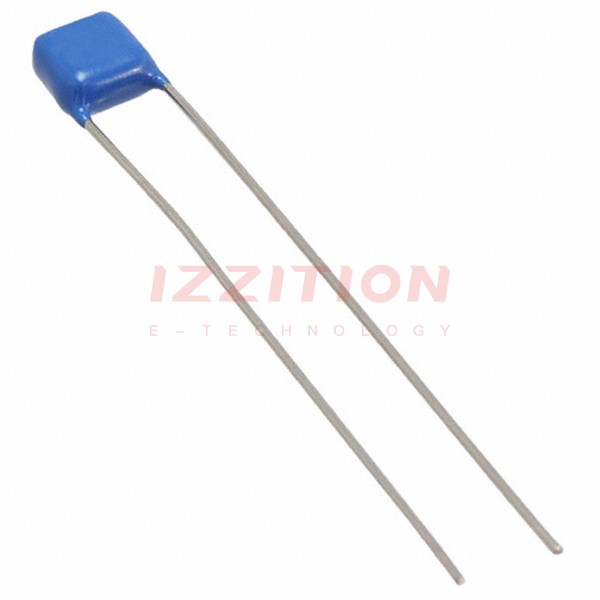

| Part Number | 20HV21B103KC | 20HV23B103KC |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Capacitance | 10000 pF | 10000 pF |
| Tolerance | ±10% | ±10% |
| Voltage - Rated | 2000V (2kV) | 2000V (2kV) |
| Temperature Coefficient | X7R | X7R |
| Operating Temperature | -55°C ~ 200°C | -55°C ~ 125°C |
| Features | High Voltage, High Temperature | High Voltage |
| Ratings | - | - |
| Applications | Downhole | Downhole |
| Failure Rate | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial | Radial |
| Size / Dimension | 0.250" L x 0.200" W (6.35mm x 5.08mm) | 0.470" L x 0.270" W (11.94mm x 6.86mm) |
| Height - Seated (Max) | 0.220" (5.59mm) | 0.400" (10.16mm) |
| Thickness (Max) | - | - |
| Lead Spacing | 0.170" (4.32mm) | 0.375" (9.52mm) |
| Lead Style | Straight | Straight |
