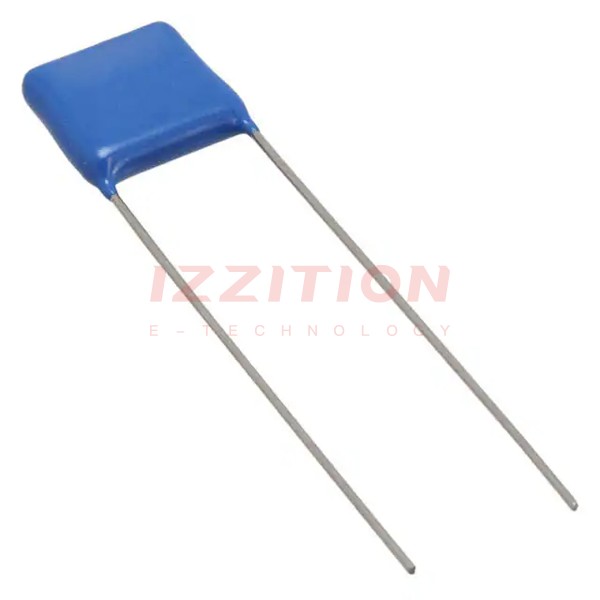

| Part Number | 20HV13B103PN | 20HV13B103MN |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Obsolete | Active |
| Capacitance | 10000 pF | 10000 pF |
| Tolerance | 0%, +100% | ±20% |
| Voltage - Rated | 2000V (2kV) | 2000V (2kV) |
| Temperature Coefficient | X7R | X7R |
| Operating Temperature | -55°C ~ 200°C | -55°C ~ 200°C |
| Features | High Voltage, High Temperature | High Voltage, High Temperature |
| Ratings | - | - |
| Applications | Downhole | Downhole |
| Failure Rate | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial | Radial |
| Size / Dimension | 0.520" L x 0.300" W (13.21mm x 7.62mm) | 0.520" L x 0.300" W (13.21mm x 7.62mm) |
| Height - Seated (Max) | 0.500" (12.70mm) | 0.500" (12.70mm) |
| Thickness (Max) | - | - |
| Lead Spacing | 0.400" (10.16mm) | 0.400" (10.16mm) |
| Lead Style | Straight | Straight |
