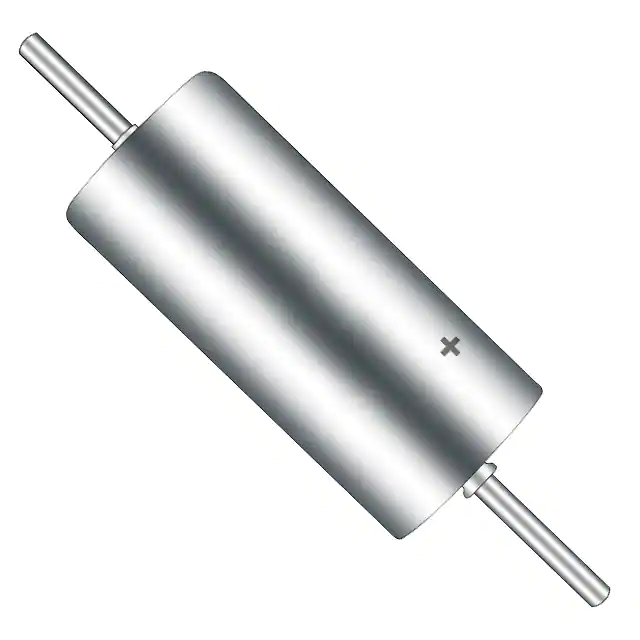

| Part Number | 13030-03MASLT | 13030-04MASLT | 13030-05MASLT | 13030-01MASLT | 13030-02MASLT | 13030-03KASLT | 13030-03MASLB |
|---|---|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 120 µF | 100 µF | 120 µF | 100 µF | 100 µF | 120 µF | 120 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±10% | ±20% |
| Voltage - Rated | 40 V | 50 V | 50 V | 25 V | 40 V | 40 V | 40 V |
| Type | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed |
| ESR (Equivalent Series Resistance) | 120mOhm @ 100kHz | 130mOhm @ 100kHz | 90mOhm @ 100kHz | 190mOhm @ 100kHz | 150mOhm @ 100kHz | 120mOhm @ 100kHz | 120mOhm @ 100kHz |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial, Can | Axial, Can | Axial, Can | Axial, Can | Axial, Can | Axial, Can | Axial, Can |
| Size / Dimension | 0.312" Dia x 0.641" L (7.92mm x 16.28mm) | 0.312" Dia x 0.641" L (7.92mm x 16.28mm) | 0.312" Dia x 0.641" L (7.92mm x 16.28mm) | 0.312" Dia x 0.641" L (7.92mm x 16.28mm) | 0.312" Dia x 0.641" L (7.92mm x 16.28mm) | 0.312" Dia x 0.641" L (7.92mm x 16.28mm) | 0.312" Dia x 0.641" L (7.92mm x 16.28mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - |
| Lead Spacing | - | - | - | - | - | - | - |
| Manufacturer Size Code | B | B | B | B | B | B | B |
| Ratings | - | - | - | - | - | - | - |
| Features | High Reliability | High Reliability | High Reliability | High Reliability | High Reliability | High Reliability | General Purpose |
