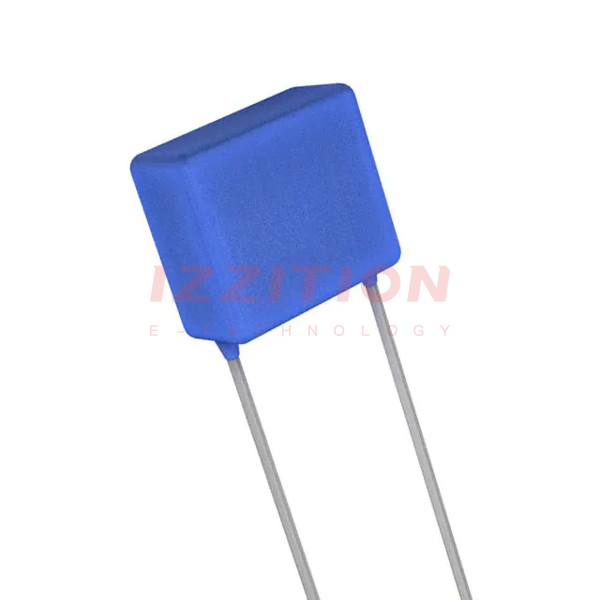

| Part Number | 10HV36B225KC | 10HV36B225KN | 10HV36B225KCM |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Capacitance | 2.2 µF | 2.2 µF | 2.2 µF |
| Tolerance | ±10% | ±10% | ±10% |
| Voltage - Rated | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) |
| Temperature Coefficient | X7R | X7R | X7R |
| Operating Temperature | -55°C ~ 200°C | -55°C ~ 125°C | -55°C ~ 200°C |
| Features | High Voltage, High Temperature | High Voltage | High Voltage, High Temperature |
| Ratings | - | - | - |
| Applications | Downhole | Downhole | Downhole |
| Failure Rate | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 1.450" L x 0.270" W (36.83mm x 6.86mm) | 1.450" L x 0.270" W (36.83mm x 6.86mm) | 1.450" L x 0.270" W (36.83mm x 6.86mm) |
| Height - Seated (Max) | 0.720" (18.29mm) | 0.720" (18.29mm) | 0.720" (18.29mm) |
| Thickness (Max) | - | - | - |
| Lead Spacing | 1.375" (34.92mm) | 1.375" (34.92mm) | 1.375" (34.92mm) |
| Lead Style | Straight | Straight | Straight |
