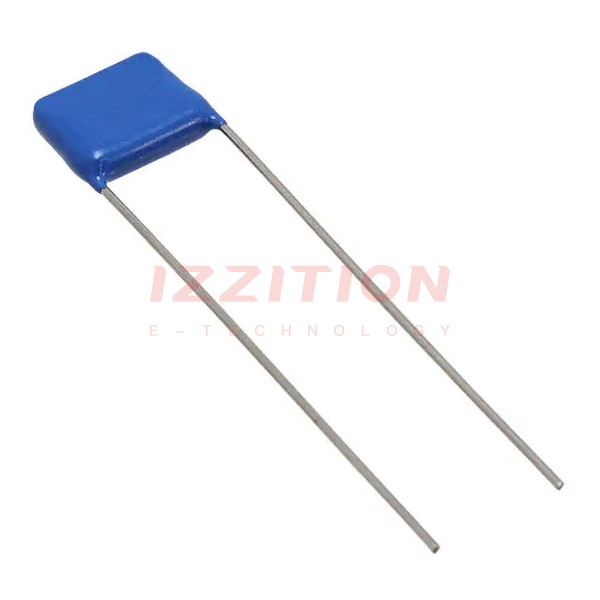

| Part Number | 10HV23B104KN | 10HV24B104KN |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Capacitance | 0.1 µF | 0.1 µF |
| Tolerance | ±10% | ±10% |
| Voltage - Rated | 1000V (1kV) | 1000V (1kV) |
| Temperature Coefficient | X7R | X7R |
| Operating Temperature | -55°C ~ 200°C | -55°C ~ 125°C |
| Features | High Voltage, High Temperature | High Voltage |
| Ratings | - | - |
| Applications | Downhole | Downhole |
| Failure Rate | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial | Radial |
| Size / Dimension | 0.470" L x 0.270" W (11.94mm x 6.86mm) | 0.570" L x 0.270" W (14.48mm x 6.86mm) |
| Height - Seated (Max) | 0.400" (10.16mm) | 0.500" (12.70mm) |
| Thickness (Max) | - | - |
| Lead Spacing | 0.375" (9.52mm) | 0.475" (12.06mm) |
| Lead Style | Straight | Straight |
