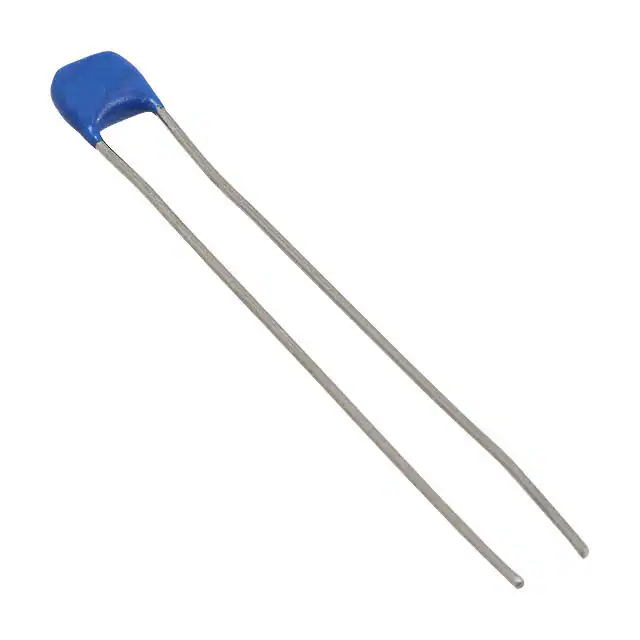

| Part Number | 05HV10N102KN | 05HV10N102JN |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Capacitance | 1000 pF | 1000 pF |
| Tolerance | ±10% | ±5% |
| Voltage - Rated | 500V | 500V |
| Temperature Coefficient | C0G, NP0 | C0G, NP0 |
| Operating Temperature | -55°C ~ 200°C | -55°C ~ 200°C |
| Features | High Voltage, High Temperature | High Voltage, High Temperature |
| Ratings | - | - |
| Applications | Downhole | Downhole |
| Failure Rate | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial | Radial |
| Size / Dimension | 0.250" L x 0.150" W (6.35mm x 3.81mm) | 0.250" L x 0.150" W (6.35mm x 3.81mm) |
| Height - Seated (Max) | 0.220" (5.59mm) | 0.220" (5.59mm) |
| Thickness (Max) | - | - |
| Lead Spacing | 0.170" (4.32mm) | 0.170" (4.32mm) |
| Lead Style | Straight | Straight |
