SM20B-XSRS-ETB(LF)(SN)
  • Share:

JST Sales America Inc. SM20B-XSRS-ETB(LF)(SN)

Manufacturer No:
SM20B-XSRS-ETB(LF)(SN)
Manufacturer:
JST Sales America Inc.
Package:
Tape & Reel (TR)
Datasheet:
SM20B-XSRS-ETB(LF)(SN) Datasheet
ECAD Model:
-
Description:

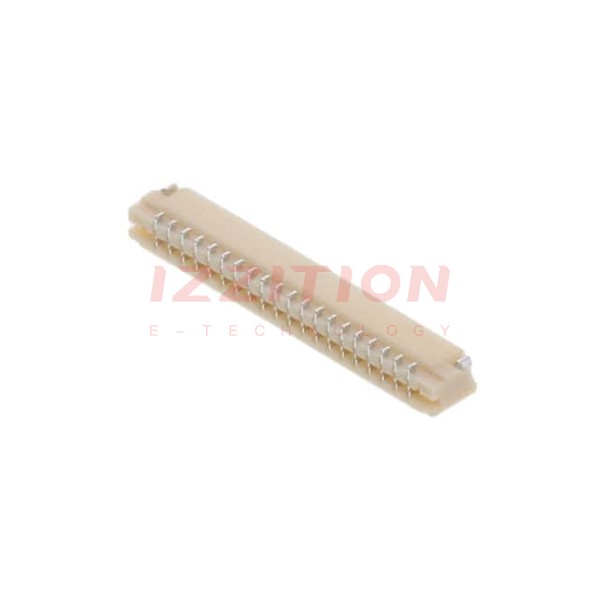

CONN HEADER SMD R/A 20POS 0.6MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Outer Shroud Contact
Pitch - Mating:0.024" (0.60mm)
Number of Positions:-
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Fastening Type:Friction Lock
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.057" (1.45mm)
Contact Shape:Rectangular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Polyamide (PA), Nylon
Features:Solder Retention
Operating Temperature:-25°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):0.2A
Voltage Rating:30V
