S9B-PH-K-S(LF)(SN)
  • Share:

JST Sales America Inc. S9B-PH-K-S(LF)(SN)

Manufacturer No:
S9B-PH-K-S(LF)(SN)
Manufacturer:
JST Sales America Inc.
Package:
Bulk
Datasheet:
S9B-PH-K-S(LF)(SN) Datasheet
ECAD Model:
-
Description:

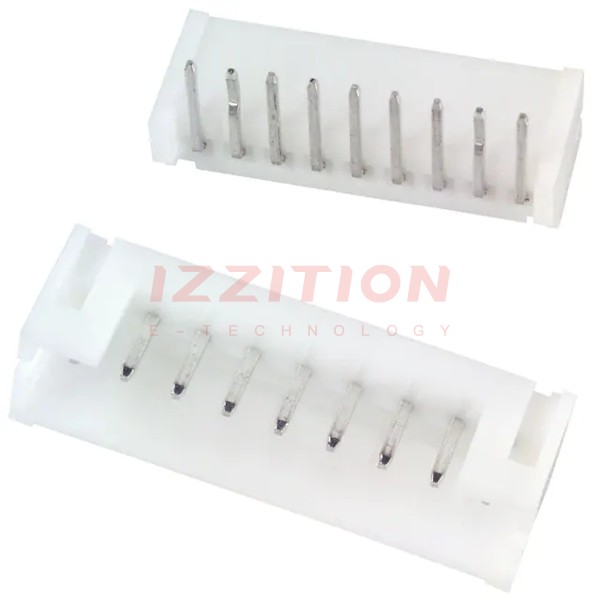

CONN HEADER R/A 9POS 2MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:9
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Press-Fit, Solder
Fastening Type:Detent Lock
Contact Length - Mating:0.130" (3.30mm)
Contact Length - Post:0.134" (3.40mm)
Overall Contact Length:-
Insulation Height:0.189" (4.80mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA66), Nylon 6/6
Features:-
Operating Temperature:-25°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):2A
Voltage Rating:100V
