S16B-PHDSS
  • Share:

JST Sales America Inc. S16B-PHDSS

Manufacturer No:
S16B-PHDSS
Manufacturer:
JST Sales America Inc.
Package:
Bulk
Datasheet:
S16B-PHDSS Datasheet
ECAD Model:
-
Description:

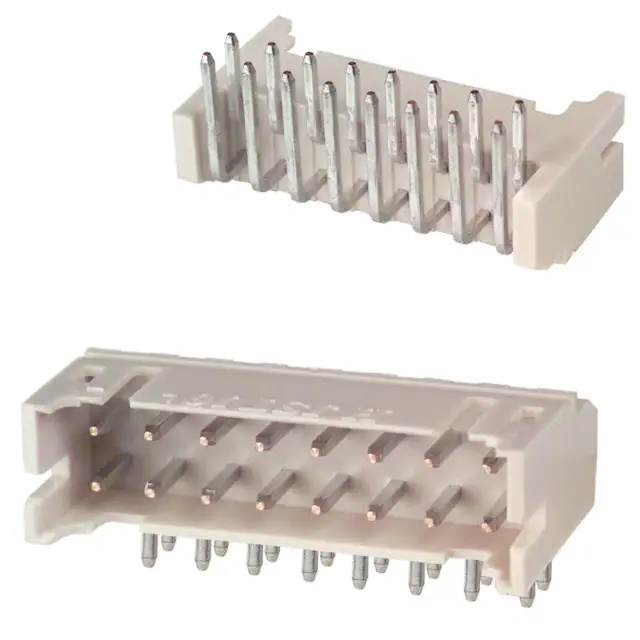

CONN HEADER R/A 16POS 2MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:16
Number of Rows:2
Row Spacing - Mating:0.079" (2.00mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Detent Lock
Contact Length - Mating:0.114" (2.90mm)
Contact Length - Post:0.118" (3.00mm)
Overall Contact Length:-
Insulation Height:0.197" (5.00mm)
Contact Shape:Square
Contact Finish - Mating:Tin-Lead
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin-Lead
Contact Material:Copper Alloy
Insulation Material:Polyamide (PA), Nylon, Glass Filled
Features:-
Operating Temperature:-25°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):3A
Voltage Rating:250V
0 Remaining View Similar

In Stock

-
509

Please send RFQ , we will respond immediately.

Similar Products

Part Number S16B-PHDSS S26B-PHDSS   S18B-PHDSS   S10B-PHDSS   S12B-PHDSS   S14B-PHDSS
Manufacturer JST Sales America Inc. JST Sales America Inc. JST Sales America Inc. JST Sales America Inc. JST Sales America Inc. JST Sales America Inc.
Product Status Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete
Connector Type Header Header Header Header Header Header
Contact Type Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin
Pitch - Mating 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm)
Number of Positions 16 26 18 10 12 14
Number of Rows 2 2 2 2 2 2
Row Spacing - Mating 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm)
Number of Positions Loaded All All All All All All
Style Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire
Shrouding Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle
Termination Solder Solder Solder Solder Solder Solder
Fastening Type Detent Lock Detent Lock Detent Lock Detent Lock Detent Lock Detent Lock
Contact Length - Mating 0.114" (2.90mm) 0.114" (2.90mm) 0.114" (2.90mm) 0.114" (2.90mm) 0.114" (2.90mm) 0.114" (2.90mm)
Contact Length - Post 0.118" (3.00mm) 0.118" (3.00mm) 0.118" (3.00mm) 0.118" (3.00mm) 0.118" (3.00mm) 0.118" (3.00mm)
Overall Contact Length - - - - - -
Insulation Height 0.197" (5.00mm) 0.197" (5.00mm) 0.197" (5.00mm) 0.197" (5.00mm) 0.197" (5.00mm) 0.197" (5.00mm)
Contact Shape Square Square Square Square Square Square
Contact Finish - Mating Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead
Contact Finish Thickness - Mating - - - - - -
Contact Finish - Post Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead
Contact Material Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy
Insulation Material Polyamide (PA), Nylon, Glass Filled Polyamide (PA), Nylon, Glass Filled Polyamide (PA), Nylon, Glass Filled Polyamide (PA), Nylon, Glass Filled Polyamide (PA), Nylon, Glass Filled Polyamide (PA), Nylon, Glass Filled
Features - - - - - -
Operating Temperature -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C
Ingress Protection - - - - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Insulation Color Natural Natural Natural Natural Natural Natural
Current Rating (Amps) 3A 3A 3A 3A 3A 3A
Voltage Rating 250V 250V 250V 250V 250V 250V
