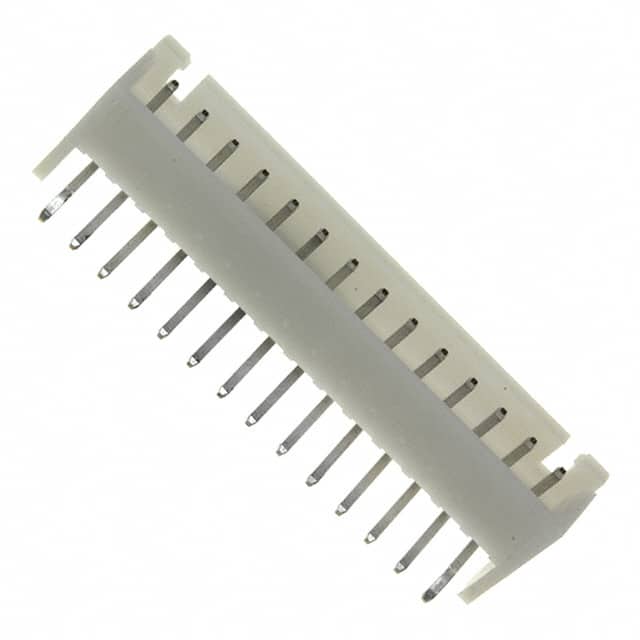

| Part Number | S14B-XH-A-1(LF)(SN) | S4B-XH-A-1(LF)(SN) | S10B-XH-A-1(LF)(SN) | S11B-XH-A-1(LF)(SN) | S12B-XH-A-1(LF)(SN) | S13B-XH-A-1(LF)(SN) |
|---|---|---|---|---|---|---|
| Manufacturer | JST Sales America Inc. | JST Sales America Inc. | JST Sales America Inc. | JST Sales America Inc. | JST Sales America Inc. | JST Sales America Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Connector Type | Header | Header | Header | Header | Header | Header |
| Contact Type | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin |
| Pitch - Mating | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) |
| Number of Positions | 14 | 4 | 10 | 11 | 12 | 13 |
| Number of Rows | 1 | 1 | 1 | 1 | 1 | 1 |
| Row Spacing - Mating | - | - | - | - | - | - |
| Number of Positions Loaded | All | All | All | All | All | All |
| Style | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle |
| Termination | Press-Fit, Solder | Press-Fit, Solder | Press-Fit, Solder | Press-Fit, Solder | Press-Fit, Solder | Press-Fit, Solder |
| Fastening Type | Detent Lock | Detent Lock | Detent Lock | Detent Lock | Detent Lock | Detent Lock |
| Contact Length - Mating | - | - | - | - | - | - |
| Contact Length - Post | 0.134" (3.40mm) | 0.134" (3.40mm) | 0.134" (3.40mm) | 0.134" (3.40mm) | 0.134" (3.40mm) | 0.134" (3.40mm) |
| Overall Contact Length | - | - | - | - | - | - |
| Insulation Height | 0.240" (6.10mm) | 0.240" (6.10mm) | 0.240" (6.10mm) | 0.240" (6.10mm) | 0.240" (6.10mm) | 0.240" (6.10mm) |
| Contact Shape | Square | Square | Square | Square | Square | Square |
| Contact Finish - Mating | Tin | Tin | Tin | Tin | Tin | Tin |
| Contact Finish Thickness - Mating | - | - | - | - | - | - |
| Contact Finish - Post | Tin | Tin | Tin | Tin | Tin | Tin |
| Contact Material | Brass | Brass | Brass | Brass | Brass | Brass |
| Insulation Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
| Features | - | - | - | - | - | - |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
| Ingress Protection | - | - | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Insulation Color | Natural | Natural | Natural | Natural | Natural | Natural |
| Current Rating (Amps) | 3A | 3A | 3A | 3A | 3A | 3A |
| Voltage Rating | 250V | 250V | 250V | 250V | 250V | 250V |
