BM15B-GHS-TBT(LF)(SN)
  • Share:

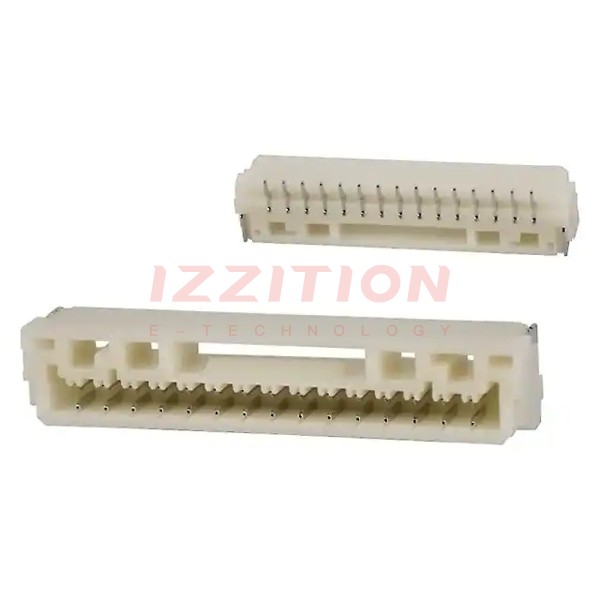

JST Sales America Inc. BM15B-GHS-TBT(LF)(SN)

Manufacturer No:
BM15B-GHS-TBT(LF)(SN)
Manufacturer:
JST Sales America Inc.
Package:
Tape & Reel (TR)
Datasheet:
BM15B-GHS-TBT(LF)(SN) Datasheet
ECAD Model:
-
Description:
CONN HEADER SMD 15POS 1.25MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Outer Shroud Contact
Pitch - Mating:0.049" (1.25mm)
Number of Positions:15
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.159" (4.05mm)
Contact Shape:Rectangular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Polyamide (PA9T), Nylon 9T
Features:Pick and Place, Solder Retention
Operating Temperature:-25°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):1A
Voltage Rating:50V
0 Remaining View Similar

In Stock

$0.76
333

Please send RFQ , we will respond immediately.
