Please send RFQ , we will respond immediately.

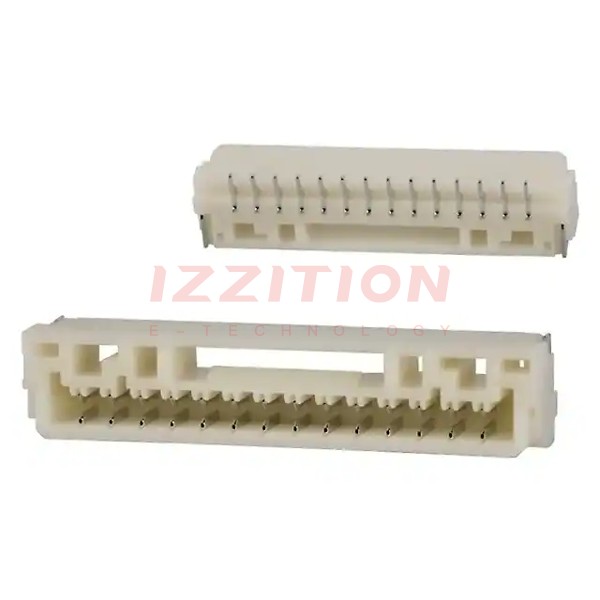

| Part Number | BM14B-GHS-TBT(LF)(SN)(N) | BM04B-GHS-TBT(LF)(SN)(N) | BM10B-GHS-TBT(LF)(SN)(N) | BM11B-GHS-TBT(LF)(SN)(N) | BM12B-GHS-TBT(LF)(SN)(N) | BM13B-GHS-TBT(LF)(SN)(N) |
|---|---|---|---|---|---|---|
| Manufacturer | JST Sales America Inc. | JST Sales America Inc. | JST Sales America Inc. | JST Sales America Inc. | JST Sales America Inc. | JST Sales America Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Connector Type | Header | Header | Header | Header | Header | Header |
| Contact Type | Outer Shroud Contact | Outer Shroud Contact | Outer Shroud Contact | Outer Shroud Contact | Outer Shroud Contact | Outer Shroud Contact |
| Pitch - Mating | 0.049" (1.25mm) | 0.049" (1.25mm) | 0.049" (1.25mm) | 0.049" (1.25mm) | 0.049" (1.25mm) | 0.049" (1.25mm) |
| Number of Positions | 14 | 4 | 10 | 11 | 12 | 13 |
| Number of Rows | 1 | 1 | 1 | 1 | 1 | 1 |
| Row Spacing - Mating | - | - | - | - | - | - |
| Number of Positions Loaded | All | All | All | All | All | All |
| Style | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Termination | Solder | Solder | Solder | Solder | Solder | Solder |
| Fastening Type | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp |
| Contact Length - Mating | - | - | - | - | - | - |
| Contact Length - Post | - | - | - | - | - | - |
| Overall Contact Length | - | - | - | - | - | - |
| Insulation Height | 0.159" (4.05mm) | 0.159" (4.05mm) | 0.159" (4.05mm) | 0.159" (4.05mm) | 0.159" (4.05mm) | 0.159" (4.05mm) |
| Contact Shape | Rectangular | Rectangular | Rectangular | Rectangular | Rectangular | Rectangular |
| Contact Finish - Mating | Tin | Tin | Tin | Tin | Tin | Tin |
| Contact Finish Thickness - Mating | - | - | - | - | - | - |
| Contact Finish - Post | Tin | Tin | Tin | Tin | Tin | Tin |
| Contact Material | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
| Insulation Material | Polyamide (PA9T), Nylon 9T | Polyamide (PA9T), Nylon 9T | Polyamide (PA9T), Nylon 9T | Polyamide (PA9T), Nylon 9T | Polyamide (PA9T), Nylon 9T | Polyamide (PA9T), Nylon 9T |
| Features | Pick and Place, Solder Retention | Pick and Place, Solder Retention | Pick and Place, Solder Retention | Pick and Place, Solder Retention | Pick and Place, Solder Retention | Pick and Place, Solder Retention |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
| Ingress Protection | - | - | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Insulation Color | Natural | Natural | Natural | Natural | Natural | Natural |
| Current Rating (Amps) | 1A | 1A | 1A | 1A | 1A | 1A |
| Voltage Rating | 50V | 50V | 50V | 50V | 50V | 50V |
