BM05B-ADHKS-GAN-ETB(HF)
  • Share:

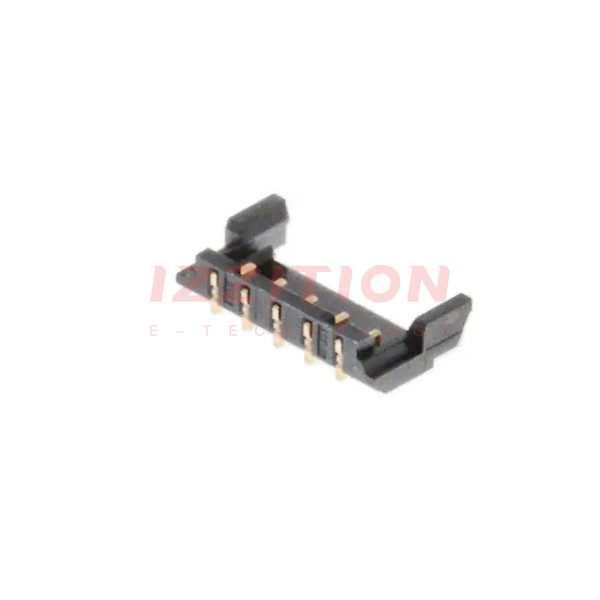

JST Sales America Inc. BM05B-ADHKS-GAN-ETB(HF)

Manufacturer No:
BM05B-ADHKS-GAN-ETB(HF)
Manufacturer:
JST Sales America Inc.
Package:
Tape & Reel (TR)
Datasheet:
BM05B-ADHKS-GAN-ETB(HF) Datasheet
ECAD Model:
-
Description:
CONN HEADER SMD R/A 5POS 1.3MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Blade
Pitch - Mating:0.051" (1.30mm)
Number of Positions:5
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 3 Wall
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Fastening Type:Detent Lock
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.069" (1.75mm)
Contact Shape:Rectangular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Thermoplastic
Features:Solder Retention
Operating Temperature:-25°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:White
Current Rating (Amps):3A
Voltage Rating:30V
0 Remaining View Similar

In Stock

$0.61
904

Please send RFQ , we will respond immediately.
