BM03B-ACHSS-GAN-ETF(LF)(SN)
  • Share:

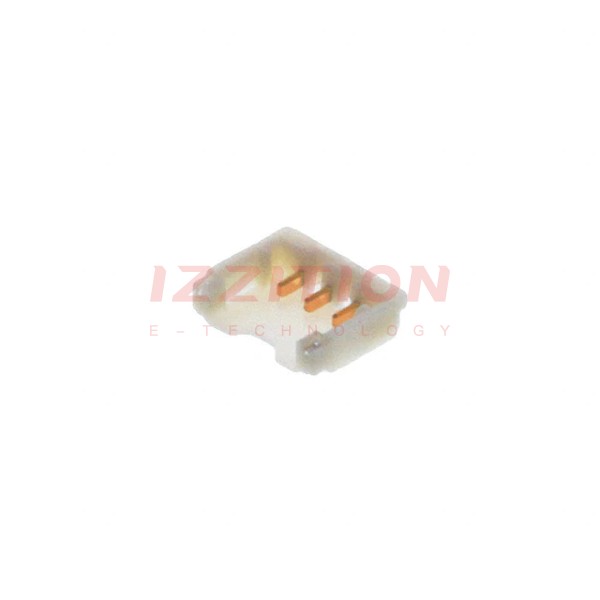

JST Sales America Inc. BM03B-ACHSS-GAN-ETF(LF)(SN)

Manufacturer No:
BM03B-ACHSS-GAN-ETF(LF)(SN)
Manufacturer:
JST Sales America Inc.
Package:
Tape & Reel (TR)
Datasheet:
BM03B-ACHSS-GAN-ETF(LF)(SN) Datasheet
ECAD Model:
-
Description:
CONN HEADER SMD R/A 3POS 1.2MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Blade
Pitch - Mating:0.047" (1.20mm)
Number of Positions:3
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 3 Wall
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Fastening Type:Detent Lock
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.055" (1.40mm)
Contact Shape:Rectangular
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:-
Contact Finish - Post:-
Contact Material:Copper Alloy
Insulation Material:Thermoplastic
Features:Solder Retention
Operating Temperature:-25°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):2A
Voltage Rating:50V
0 Remaining View Similar

In Stock

$0.69
902

Please send RFQ , we will respond immediately.

Similar Products

Part Number BM03B-ACHSS-GAN-ETF(LF)(SN) BM03B-ACHSS-GAN-TF(LF)(SN)
Manufacturer JST Sales America Inc. JST Sales America Inc.
Product Status Active Active
Connector Type Header Header
Contact Type Male Blade Male Blade
Pitch - Mating 0.047" (1.20mm) 0.047" (1.20mm)
Number of Positions 3 3
Number of Rows 1 1
Row Spacing - Mating - -
Number of Positions Loaded All All
Style Board to Cable/Wire Board to Cable/Wire
Shrouding Shrouded - 3 Wall Shrouded - 3 Wall
Mounting Type Surface Mount, Right Angle Surface Mount, Right Angle
Termination Solder Solder
Fastening Type Detent Lock Detent Lock
Contact Length - Mating - -
Contact Length - Post - -
Overall Contact Length - -
Insulation Height 0.055" (1.40mm) 0.055" (1.40mm)
Contact Shape Rectangular Rectangular
Contact Finish - Mating Gold Gold
Contact Finish Thickness - Mating - -
Contact Finish - Post - -
Contact Material Copper Alloy Copper Alloy
Insulation Material Thermoplastic Thermoplastic
Features Solder Retention Solder Retention
Operating Temperature -25°C ~ 85°C -25°C ~ 85°C
Ingress Protection - -
Material Flammability Rating UL94 V-0 UL94 V-0
Insulation Color Natural Natural
Current Rating (Amps) 2A 2A
Voltage Rating 50V 50V
