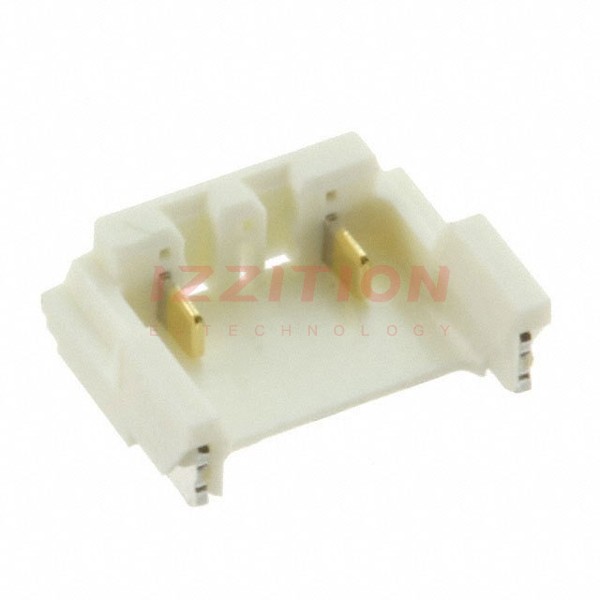

BM02(3)B-ADHSS-GAN-ETB(LF)(SN)
  • Share:

JST Sales America Inc. BM02(3)B-ADHSS-GAN-ETB(LF)(SN)

Manufacturer No:
BM02(3)B-ADHSS-GAN-ETB(LF)(SN)
Manufacturer:
JST Sales America Inc.
Package:
Tape & Reel (TR)
Datasheet:
BM02(3)B-ADHSS-GAN-ETB(LF)(SN) Datasheet
ECAD Model:
-
Description:
CONN HEADER SMD R/A 3POS 1.3MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Blade
Pitch - Mating:0.051" (1.30mm)
Number of Positions:3
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:2
Style:Board to Cable/Wire
Shrouding:Shrouded - 3 Wall
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Fastening Type:Detent Lock
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.069" (1.75mm)
Contact Shape:Rectangular
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:-
Contact Finish - Post:-
Contact Material:Copper Alloy
Insulation Material:Thermoplastic
Features:Solder Retention
Operating Temperature:-25°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:White
Current Rating (Amps):3A
Voltage Rating:30V
0 Remaining View Similar

In Stock

$0.50
167

Please send RFQ , we will respond immediately.
