B4B-PH-SM4-TB(LF)(SN)
  • Share:

JST Sales America Inc. B4B-PH-SM4-TB(LF)(SN)

Manufacturer No:
B4B-PH-SM4-TB(LF)(SN)
Manufacturer:
JST Sales America Inc.
Package:
Tape & Reel (TR)
Datasheet:
B4B-PH-SM4-TB(LF)(SN) Datasheet
ECAD Model:
-
Description:

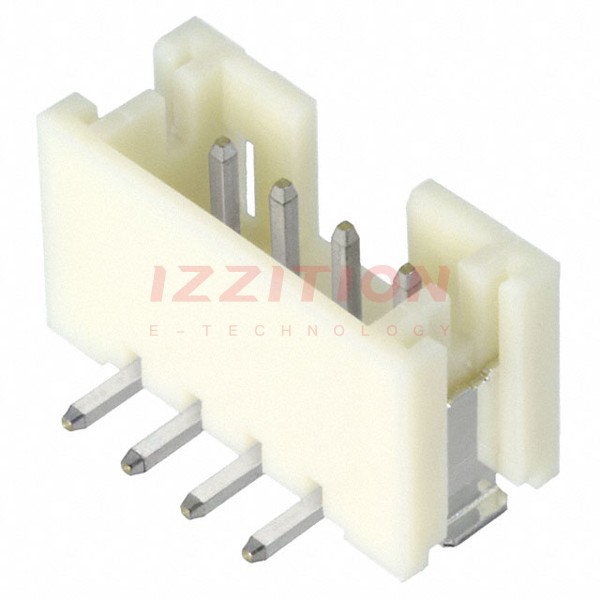

CONN HEADER SMD 4POS 2MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:4
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Detent Lock
Contact Length - Mating:0.130" (3.30mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.260" (6.60mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Polyamide (PA6T), Nylon 6T
Features:Solder Retention
Operating Temperature:-25°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):2A
Voltage Rating:100V
