B40B-PNDZS-1(T)(LF)(SN)
  • Share:

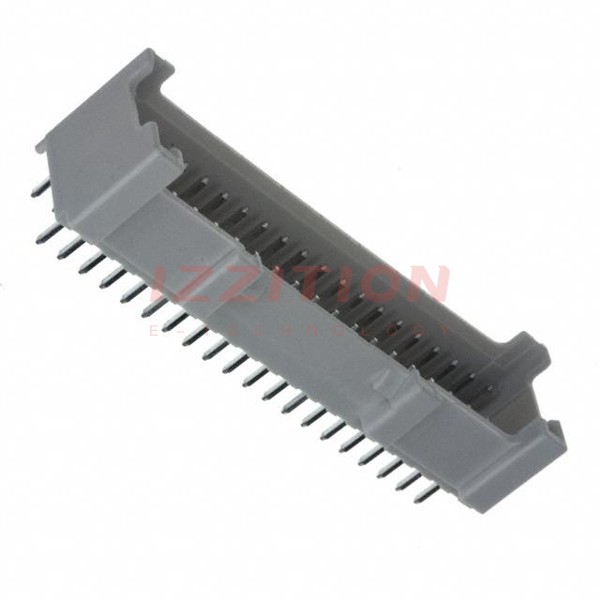

JST Sales America Inc. B40B-PNDZS-1(T)(LF)(SN)

Manufacturer No:
B40B-PNDZS-1(T)(LF)(SN)
Manufacturer:
JST Sales America Inc.
Package:
Tray
Datasheet:
B40B-PNDZS-1(T)(LF)(SN) Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 40POS 2MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:40
Number of Rows:2
Row Spacing - Mating:0.197" (5.00mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:-
Contact Length - Post:0.126" (3.20mm)
Overall Contact Length:-
Insulation Height:0.390" (9.91mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Polyamide (PA66), Nylon 6/6, Glass Filled
Features:Board Guide
Operating Temperature:-25°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Ivory
Current Rating (Amps):3A
Voltage Rating:250V
0 Remaining View Similar

In Stock

$1.45
317

Please send RFQ , we will respond immediately.
