B2P-VH
  • Share:

JST Sales America Inc. B2P-VH

Manufacturer No:
B2P-VH
Manufacturer:
JST Sales America Inc.
Package:
Bulk
Datasheet:
B2P-VH Datasheet
ECAD Model:
-
Description:

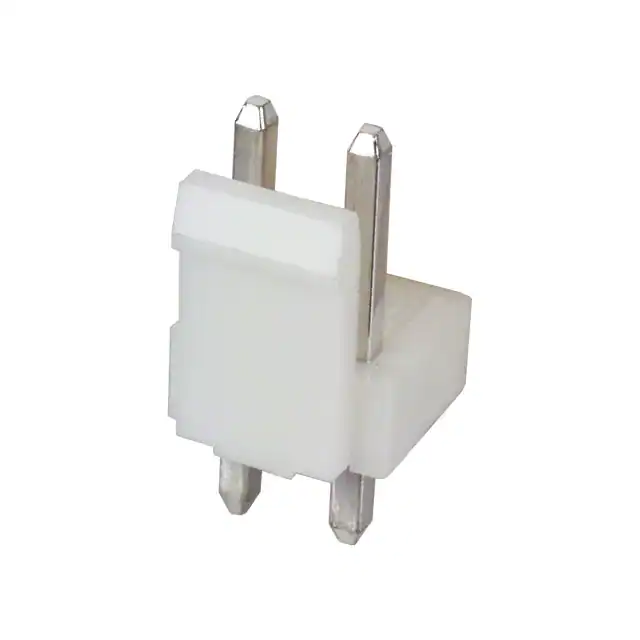

CONN HEADER VERT 2POS 3.96MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.156" (3.96mm)
Number of Positions:2
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 1 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:0.303" (7.70mm)
Contact Length - Post:0.146" (3.70mm)
Overall Contact Length:0.575" (14.60mm)
Insulation Height:0.370" (9.40mm)
Contact Shape:Square
Contact Finish - Mating:Tin-Lead
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin-Lead
Contact Material:Brass
Insulation Material:Polyamide (PA66), Nylon 6/6
Features:-
Operating Temperature:-25°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):10A
Voltage Rating:250V
0 Remaining View Similar

In Stock

-
273

Please send RFQ , we will respond immediately.

Similar Products

Part Number B2P-VH B3P-VH   B4P-VH   B2PS-VH
Manufacturer JST Sales America Inc. JST Sales America Inc. JST Sales America Inc. JST Sales America Inc.
Product Status Obsolete Obsolete Obsolete Obsolete
Connector Type Header Header Header Header
Contact Type Male Pin Male Pin Male Pin Male Pin
Pitch - Mating 0.156" (3.96mm) 0.156" (3.96mm) 0.156" (3.96mm) 0.156" (3.96mm)
Number of Positions 2 3 4 2
Number of Rows 1 1 1 1
Row Spacing - Mating - - - -
Number of Positions Loaded All All All All
Style Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire
Shrouding Shrouded - 1 Wall Shrouded - 1 Wall Shrouded - 1 Wall Shrouded - 1 Wall
Mounting Type Through Hole Through Hole Through Hole Through Hole, Right Angle
Termination Solder Solder Solder Solder
Fastening Type Locking Ramp Locking Ramp Locking Ramp Locking Ramp
Contact Length - Mating 0.303" (7.70mm) 0.303" (7.70mm) 0.303" (7.70mm) 0.303" (7.70mm)
Contact Length - Post 0.146" (3.70mm) 0.146" (3.70mm) 0.146" (3.70mm) 0.142" (3.60mm)
Overall Contact Length 0.575" (14.60mm) 0.575" (14.60mm) 0.575" (14.60mm) -
Insulation Height 0.370" (9.40mm) 0.370" (9.40mm) 0.370" (9.40mm) 0.335" (8.51mm)
Contact Shape Square Square Square Square
Contact Finish - Mating Tin-Lead Tin-Lead Tin-Lead Tin-Lead
Contact Finish Thickness - Mating - - - -
Contact Finish - Post Tin-Lead Tin-Lead Tin-Lead Tin-Lead
Contact Material Brass Brass Brass Brass
Insulation Material Polyamide (PA66), Nylon 6/6 Polyamide (PA66), Nylon 6/6 Polyamide (PA66), Nylon 6/6 Polyamide (PA66), Nylon 6/6
Features - - - -
Operating Temperature -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C
Ingress Protection - - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Insulation Color Natural Natural Natural Natural
Current Rating (Amps) 10A 10A 10A 10A
Voltage Rating 250V 250V 250V 250V
