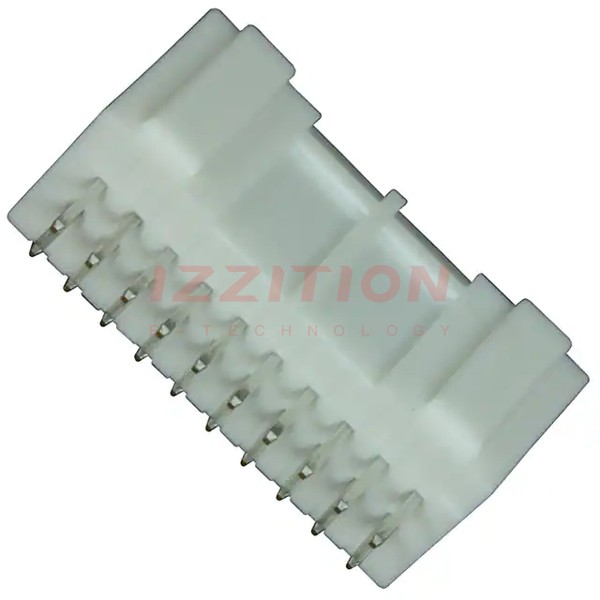

| Part Number | B20B-PADSS(LF)(SN) | B22B-PADSS(LF)(SN) | B20B-PHDSS(LF)(SN) | B24B-PADSS(LF)(SN) |
|---|---|---|---|---|
| Manufacturer | JST Sales America Inc. | JST Sales America Inc. | JST Sales America Inc. | JST Sales America Inc. |
| Product Status | Active | Active | Active | Obsolete |
| Connector Type | Header | Header | Header | Header |
| Contact Type | Male Pin | Male Pin | Male Pin | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Number of Positions | 20 | 22 | 20 | 24 |
| Number of Rows | 2 | 2 | 2 | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Number of Positions Loaded | All | All | All | All |
| Style | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination | Solder | Solder | Solder | Solder |
| Fastening Type | Locking Ramp | Locking Ramp | Detent Lock | Locking Ramp |
| Contact Length - Mating | - | - | 0.114" (2.90mm) | - |
| Contact Length - Post | 0.134" (3.40mm) | 0.134" (3.40mm) | 0.118" (3.00mm) | 0.134" (3.40mm) |
| Overall Contact Length | - | - | 0.291" (7.40mm) | - |
| Insulation Height | 0.402" (10.20mm) | 0.402" (10.20mm) | 0.256" (6.50mm) | 0.402" (10.20mm) |
| Contact Shape | Square | Square | Square | Square |
| Contact Finish - Mating | Tin | Tin | Tin | Tin |
| Contact Finish Thickness - Mating | - | - | - | - |
| Contact Finish - Post | Tin | Tin | Tin | Tin |
| Contact Material | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled | Polyamide (PA66), Nylon 6/6, Glass Filled | Polyamide (PA), Nylon, Glass Filled | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Features | - | - | - | - |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
| Ingress Protection | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Insulation Color | Natural | Natural | Natural | Natural |
| Current Rating (Amps) | 3A | 3A | 3A | 3A |
| Voltage Rating | 250V | 250V | 250V | 250V |
