B1B-XH-AM(LF)(SN)(P)
  • Share:

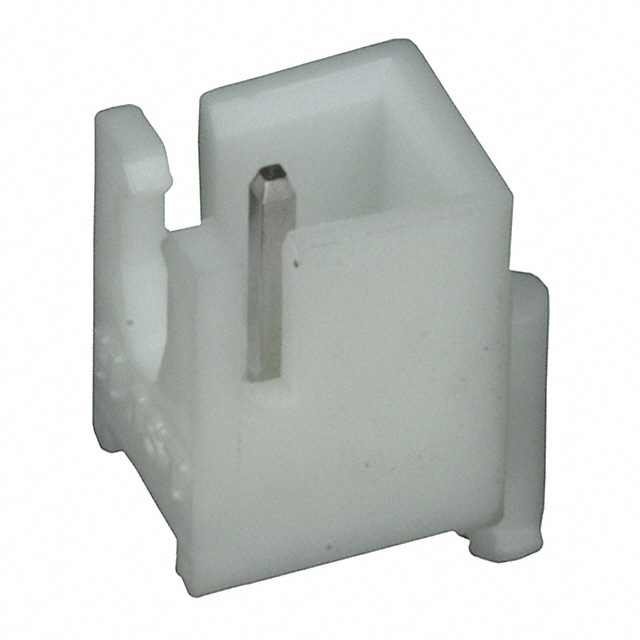

JST Sales America Inc. B1B-XH-AM(LF)(SN)(P)

Manufacturer No:
B1B-XH-AM(LF)(SN)(P)
Manufacturer:
JST Sales America Inc.
Package:
Bulk
Datasheet:
B1B-XH-AM(LF)(SN)(P) Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 1POS
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:-
Number of Positions:1
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Press-Fit, Solder
Fastening Type:Detent Lock
Contact Length - Mating:-
Contact Length - Post:0.134" (3.40mm)
Overall Contact Length:-
Insulation Height:0.276" (7.00mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA66), Nylon 6/6
Features:Board Lock
Operating Temperature:-25°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):3A
Voltage Rating:250V
0 Remaining View Similar

In Stock

$0.28
2,225

Please send RFQ , we will respond immediately.
